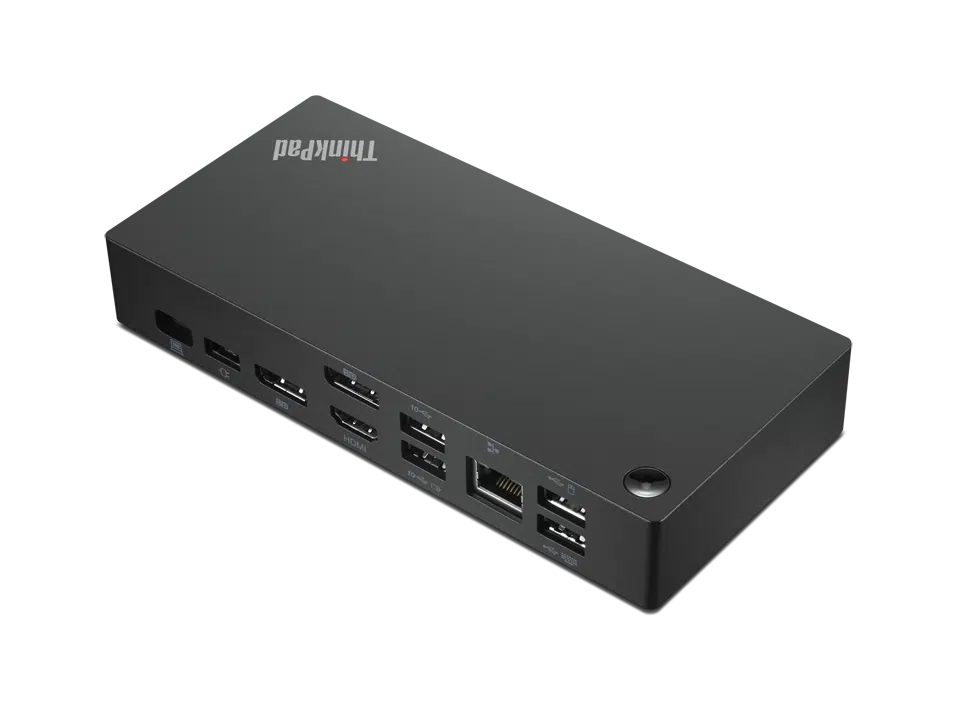

Lenovo ThinkPad Universal USB-C Dock

Physical Specifications

• Video Ports:
  • Two DisplayPort (DP)
  • One HDMI
• USB Ports:
  • Three USB 3.1
  • Two USB 2.0
  • One USB-C
• Audio Ports: Combo Audio Jack
• Ethernet: Gigabit Ethernet
• Physical Security Feature: Security lock slot
• Maximum Number of External Monitors: 3
• Maximum Resolution and Refresh Rate
  • Two at 3840×2160 @60Hz;
  • One at 3840×2160 @30Hz
• Charging Port: DC-IN
• Input Power: 90W or 135W
• Power Delivery: Yes
• Output Power: 65W with 90W power adapter connected;100W with 135W power adapter connected
• Power Button: Yes
• Power Plug: Slim-tip
• Dimensions
  • Length: 171 mm (6.7 inches)
  • Depth: 80 mm (3.1 inches)
  • Height: 31 mm (1.2 inches)
• Weight: 340 g (0.74 lb)
• Packaged Dimensions:
  • Length: 210 mm (8.3 inches)
  • Depth: 158 mm (6.2 inches)
  • Heigh: 75 mm (3.0 inches)
• Packaged Weight: 955 g (2.1 lb)
• Agency Approvals: FCC/ICES; CE; KCC; RCM; BSMI; VCCI; CB; cULus; EAC; TUV- Mark; Serbia Kvalitet; LoA; Israel SII; Ukraine DoC; NOM

Operating Environment

• Minimum Operating Temperature: 0° C
• Maximum Operating Temperature: 35° C
• Minimum Relative Humidity (%): 20%
• Maximum Relative Humidity (%): 95% ( no Condensation)
