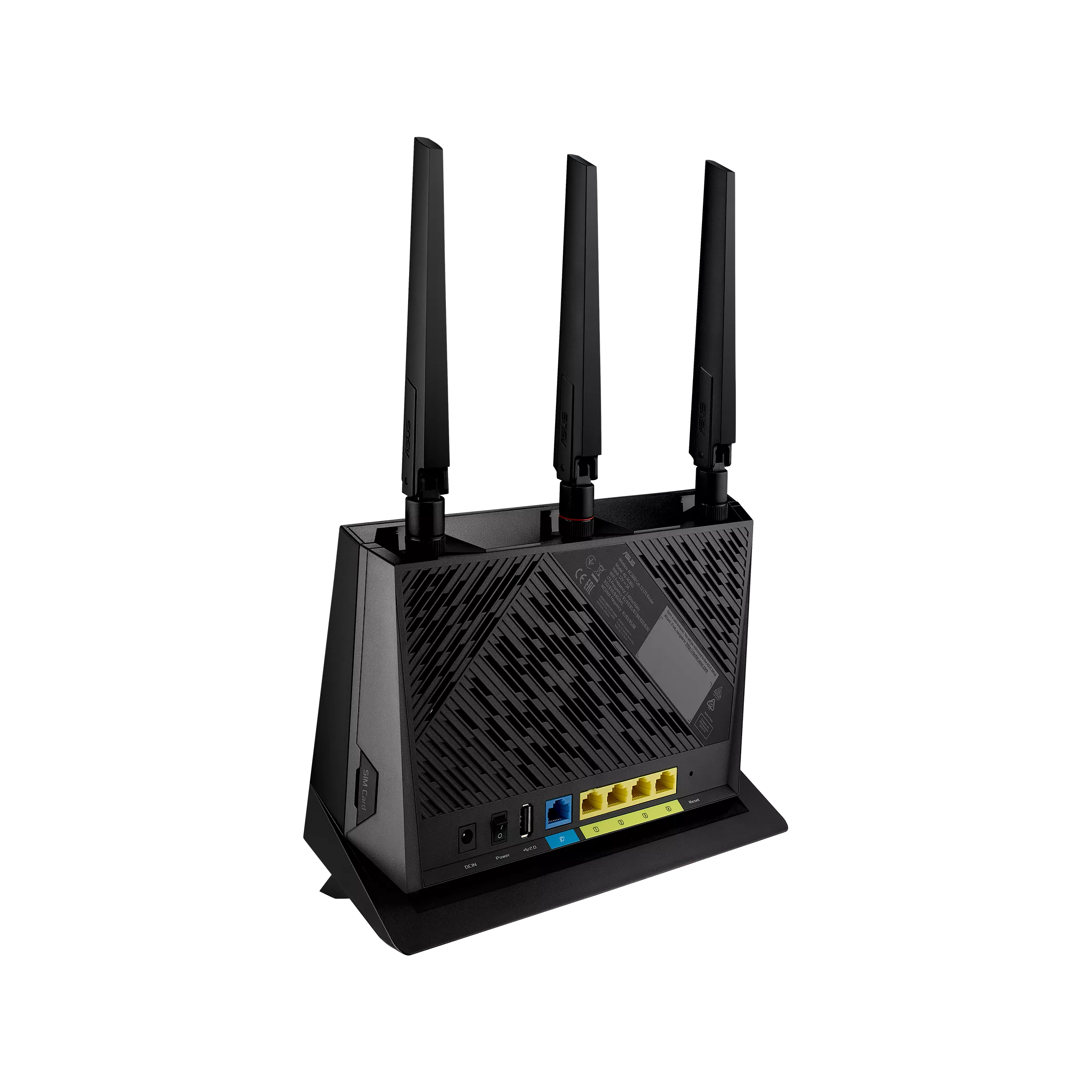

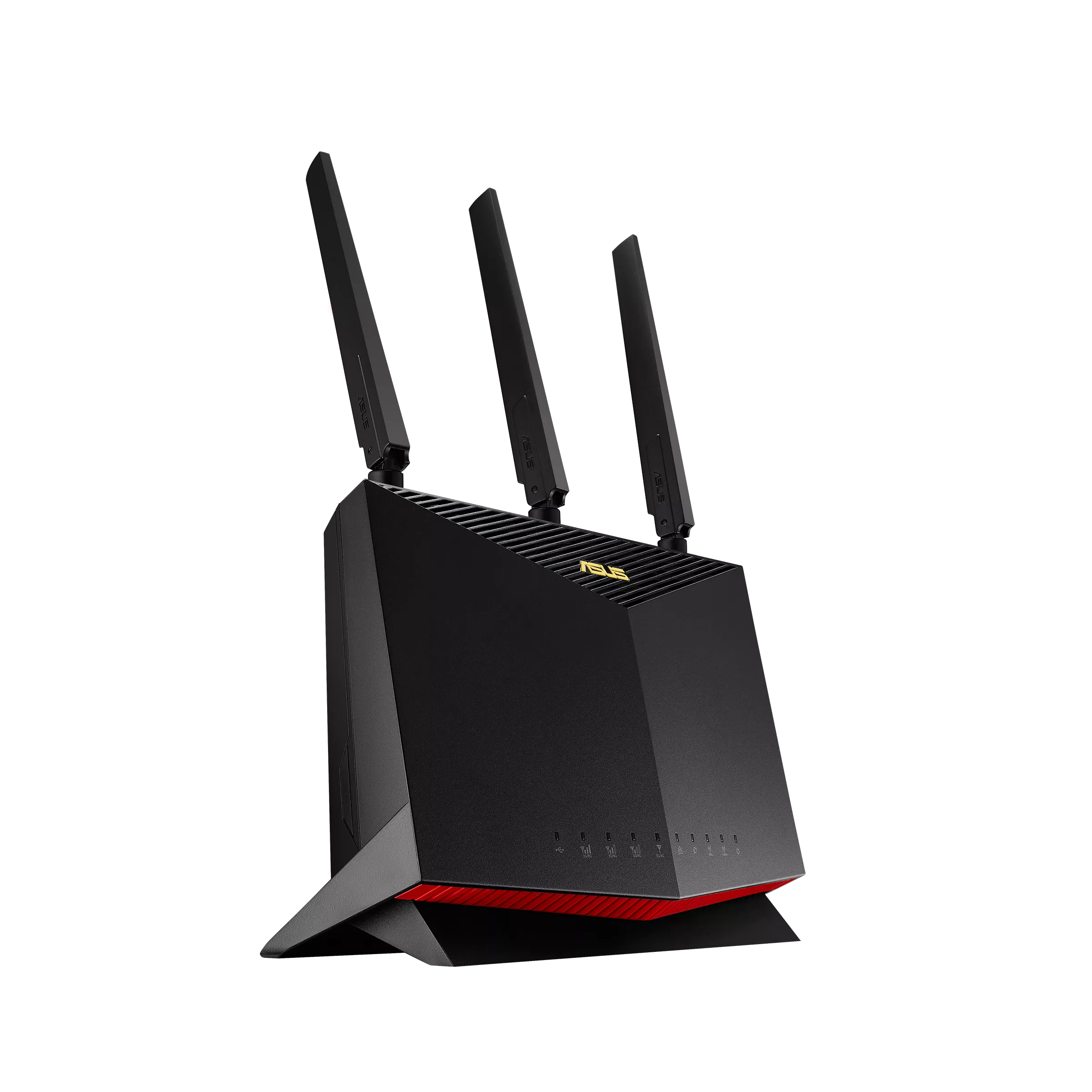

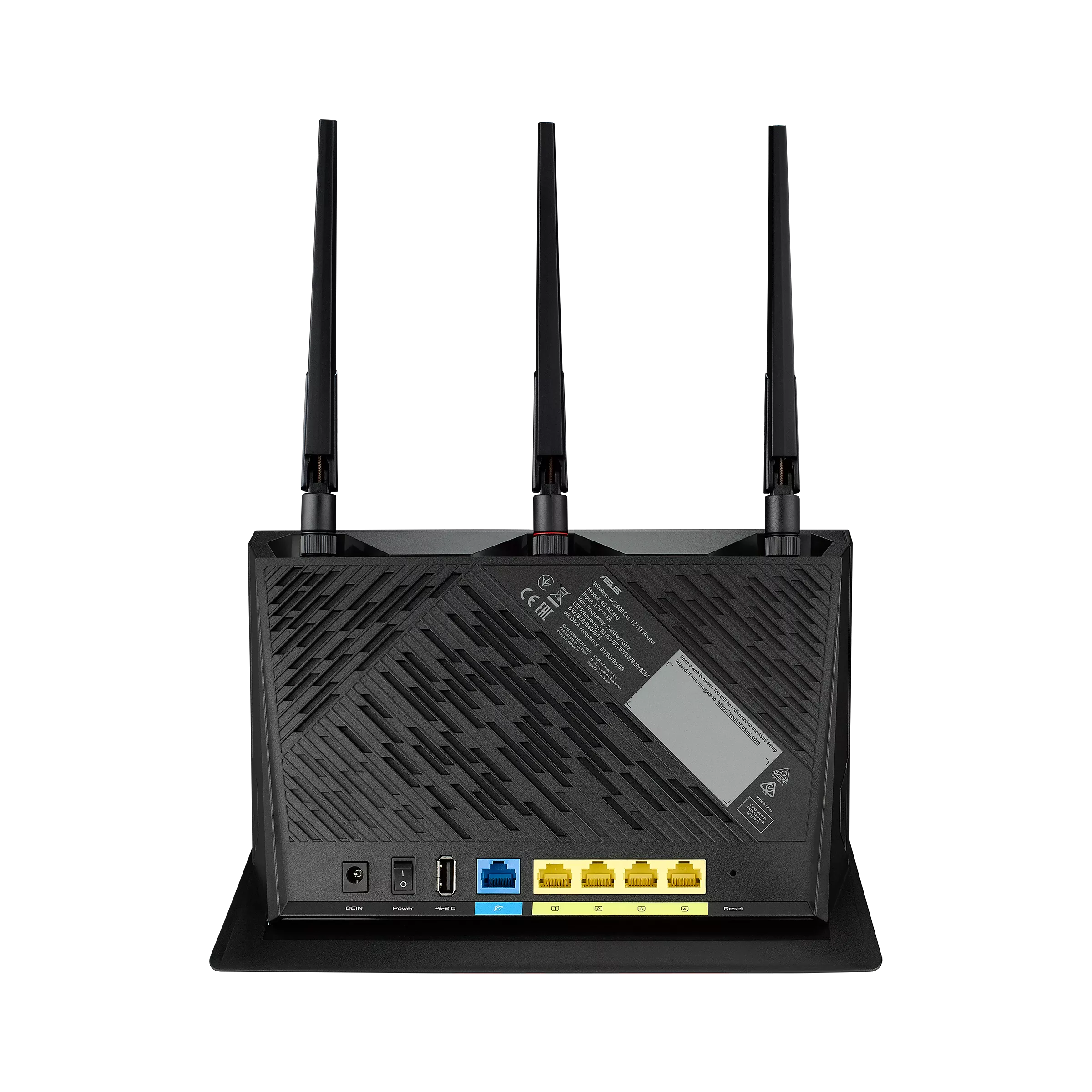

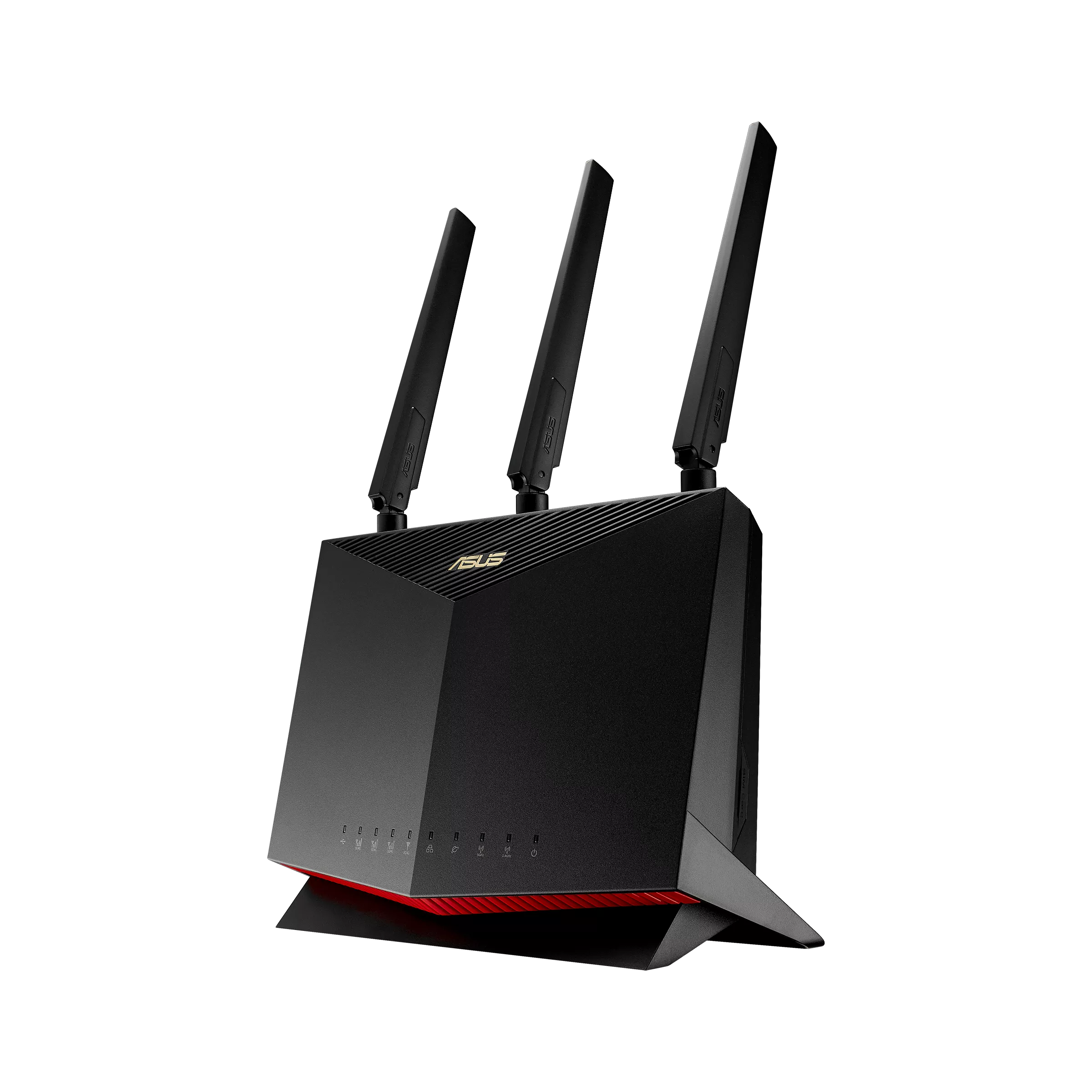

Asus 4G-AC86U Dual Band LTE (802.11ac) Router / 90IG05R0-BM9100

IEEE 802.11i

IEEE 802.11e

IPv6

IPv4

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

AC2600 ultimate AC performance : 800+1733 Mbps

WiFi 5 (802.11ac) : up to 1733 Mbps

WiFi 4 (802.11n) (256QAM) : up to 800 Mbps

802.11g : up to 54 Mbps

802.11b : up to 11 Mbps

802.11a : up to 54 Mbps

LTE Cat.12 : Downlink 600 Mbps / Uplink 150 Mbps
HSPA+: Downlink 42.2 Mbps / Uplink 5.76 Mbps
4G FDD-LTE: 1 /3 /5 /7 /8 /20 /28 /32
4G TDD-LTE: 38 /40 /41
3G UMTS: 1 /3 /5 /8

Internal dual-band antenna x 3
External dual-band antenna x 1
External 3dBi antenna x 2 for Mobile

128 MB Flash
512 MB RAM

2.4 GHz / 5 GHz

Modem Router, Access Point

RJ45 for 10/100/1000 BaseT for LAN x 4, RJ45 for 10/100/1000 BaseT for WAN x 1
USB 2.0 x 1
Nano SIM slot x 1

WPS Button, Reset Button, Power Switch

Power x 1
Wi-Fi x 2
WAN x 1
LAN x 1
Mobile WAN connection x 1
Mobile WAN signal x 3
USB x 1

4G-AC86U Mobile Modem WiFi router
Nano SIM Tray
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
