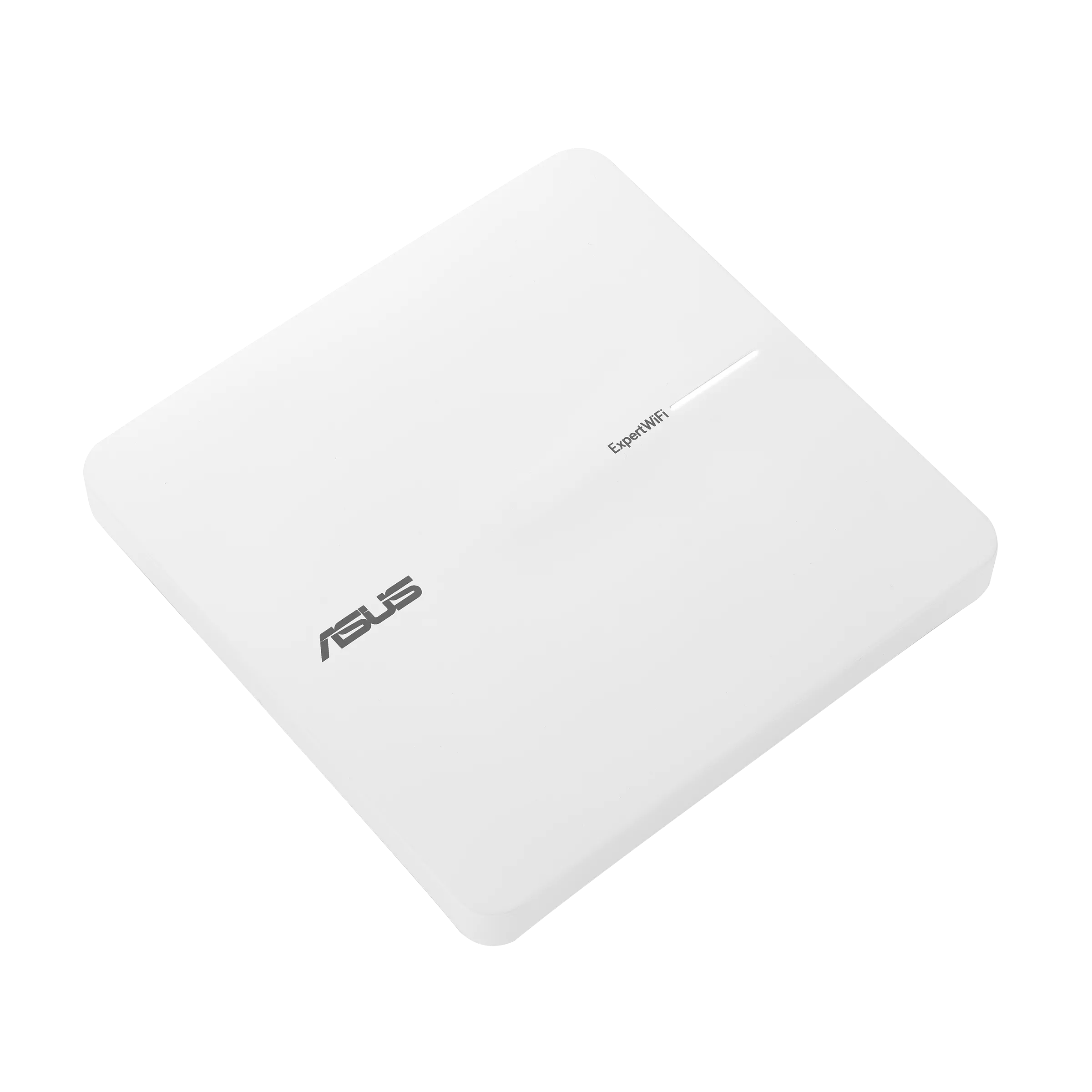

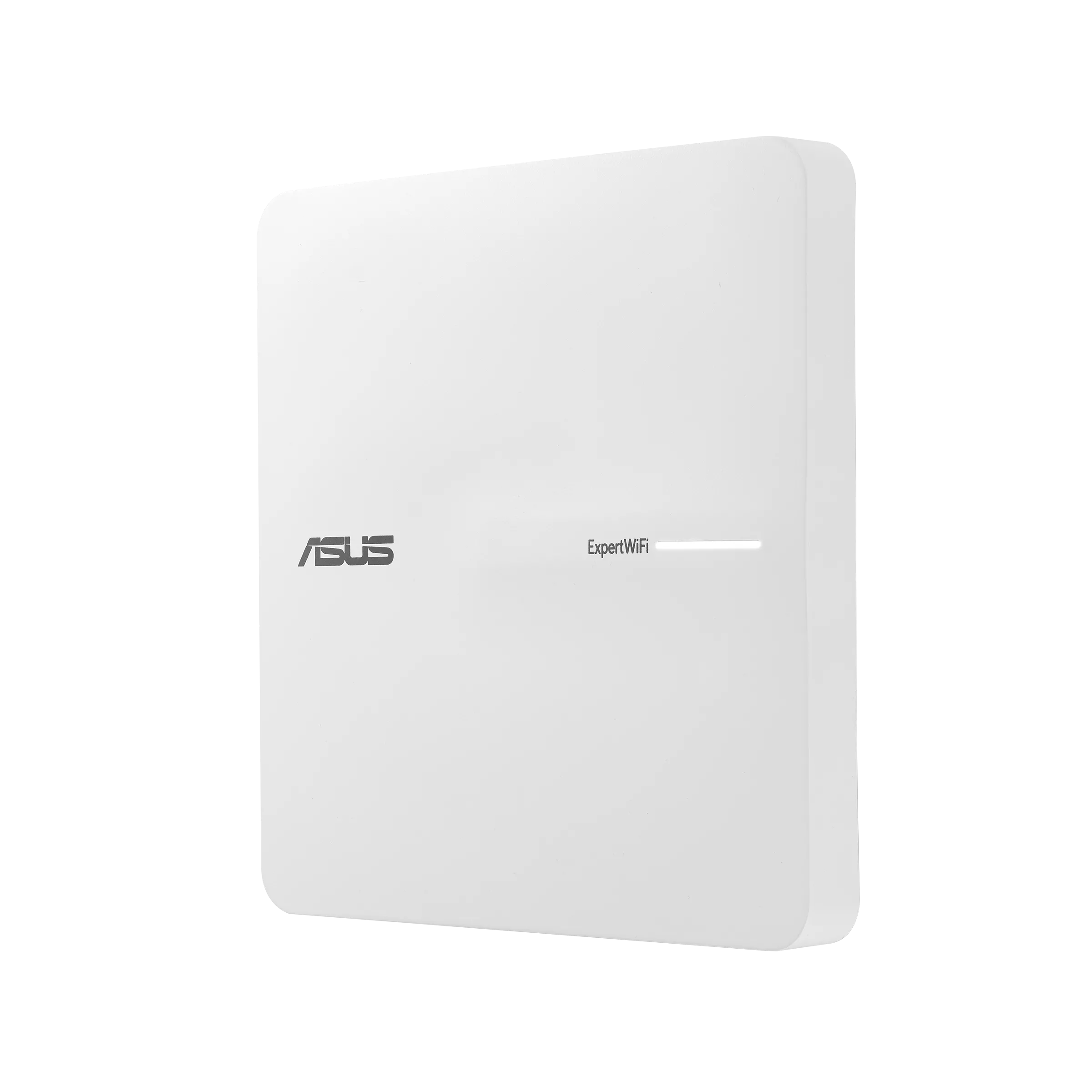

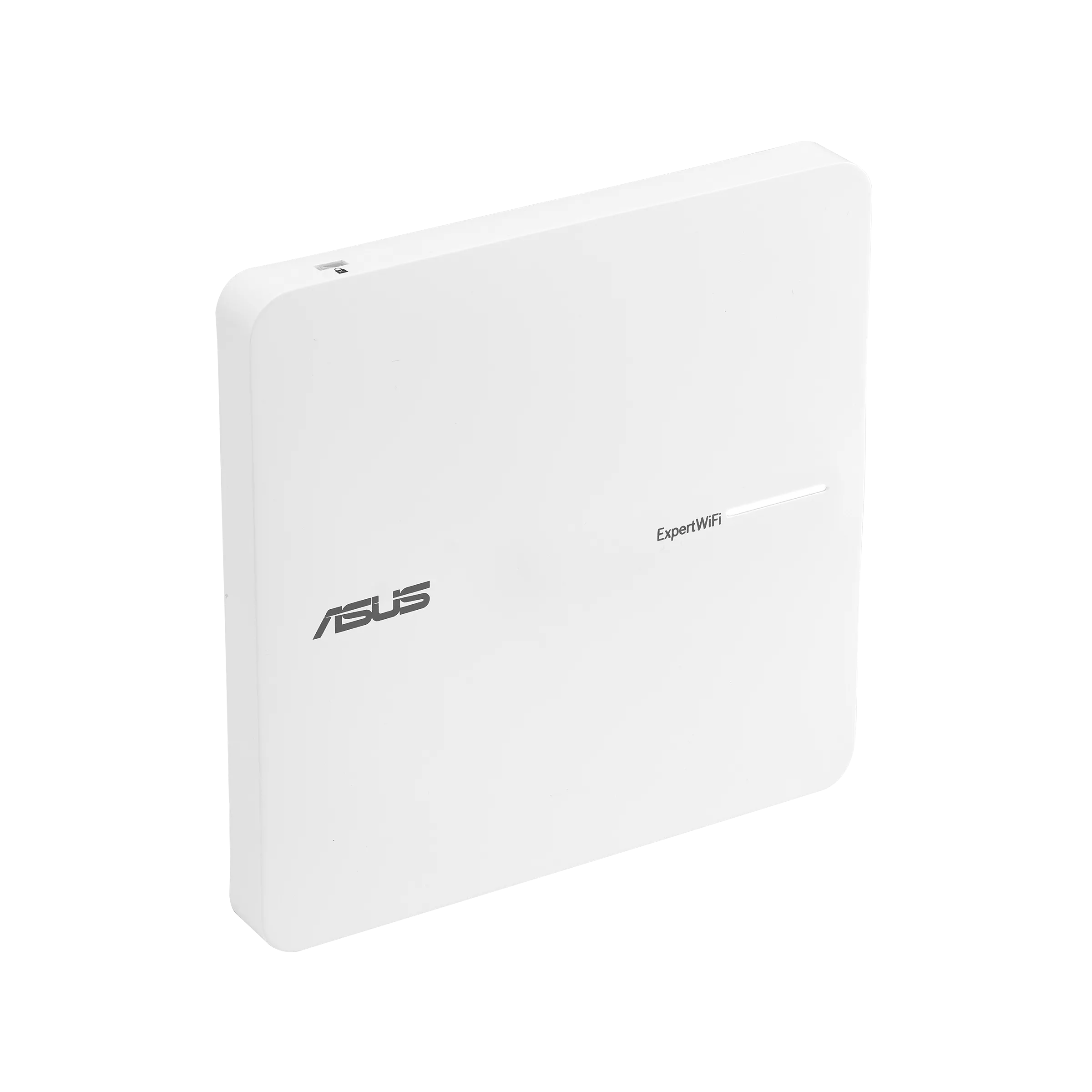

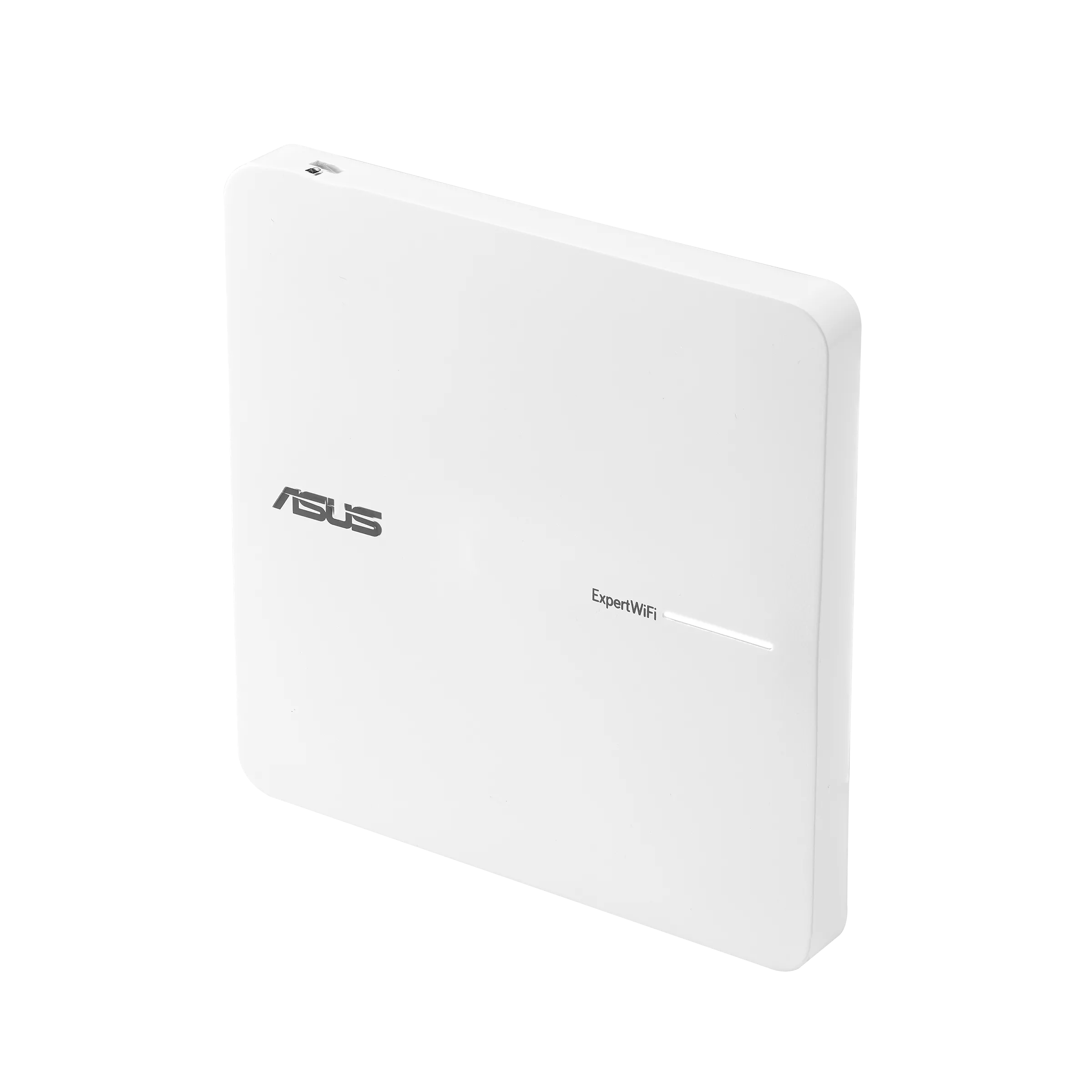

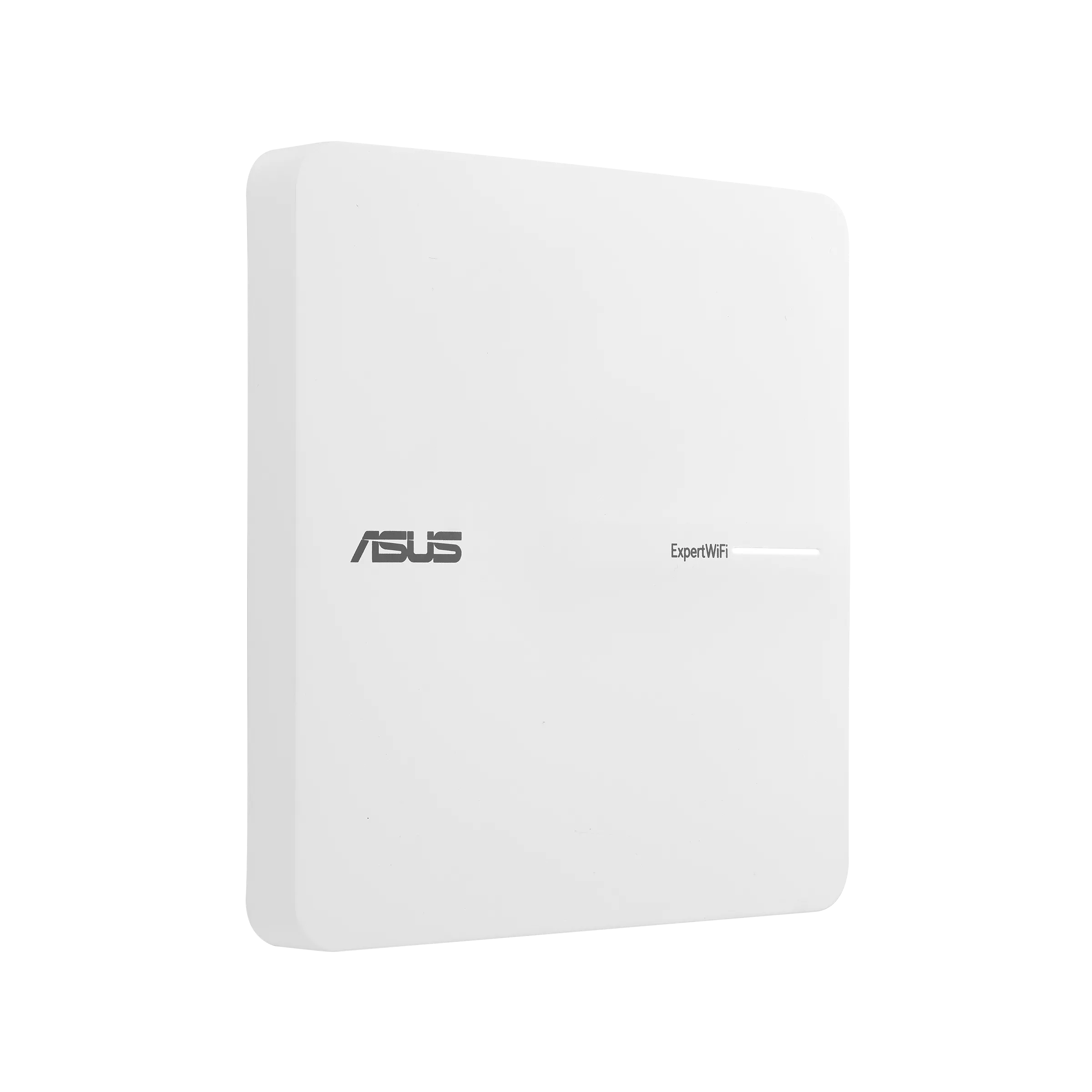

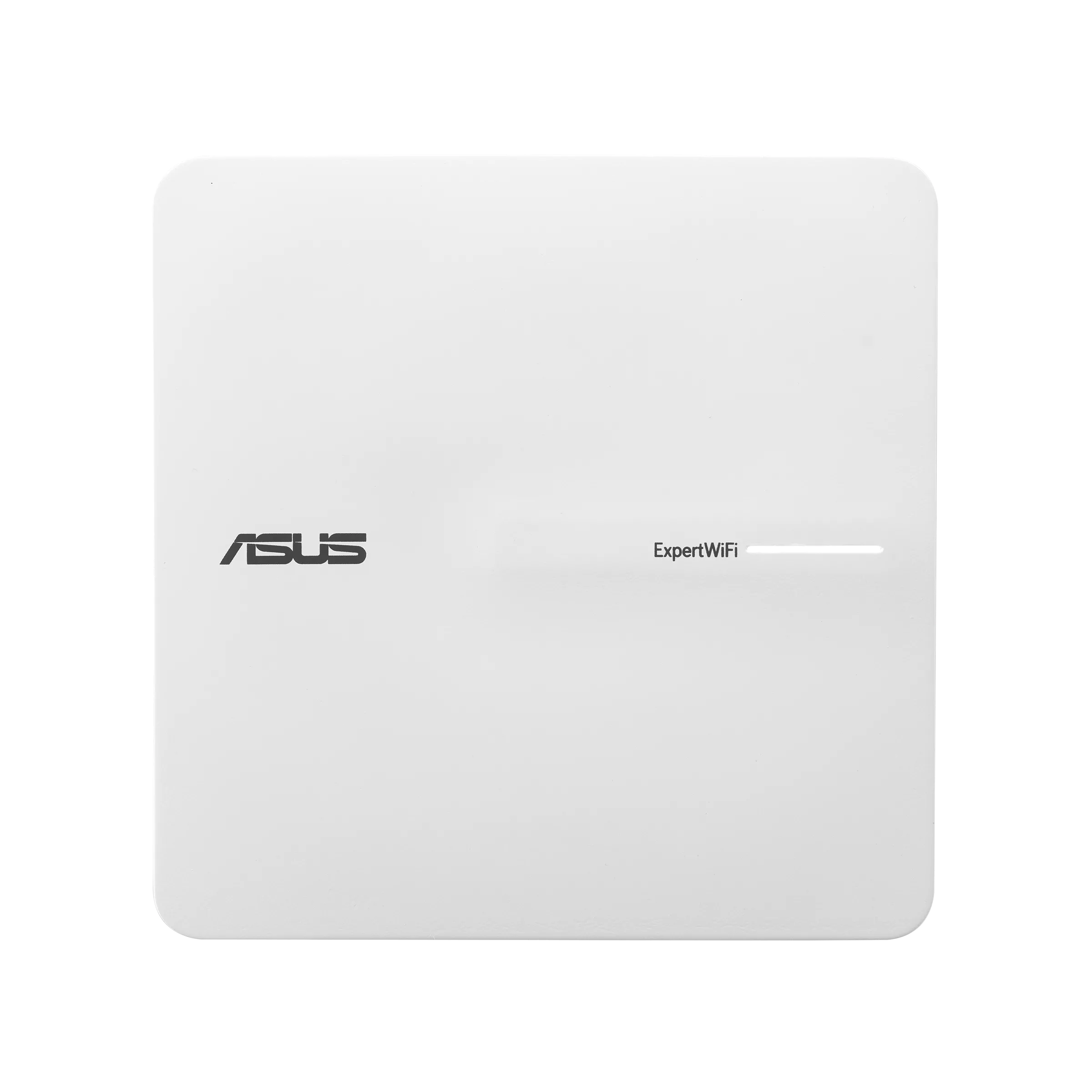

ASUS AX3000 Dual-Band WiFi 6 (802.11ax) PoE Access Point / 90IG0880-MO3C00

EBA63

IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
IPv4
IPv6

AX3000 ultimate AX performance : 2402 Mbps+ 574 Mbps

802.11a : up to 54 Mbps
802.11b : up to 11 Mbps
802.11g : up to 54 Mbps
WiFi 4 (802.11n) : up to 300 Mbps
WiFi 5 (802.11ac) : up to 1734 Mbps
WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps
WiFi 6 (802.11ax) (5GHz) : up to 2402 Mbps

Internal antenna x 4

2.4GHz 2×2
5GHz 2×2

1.7 GHz quad-core processor

256 MB Flash
512 MB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth
* The 160MHz bandwidth may be unavailable in the 5GHz band in some regions / countries due to regulatory restrictions.

2.4 GHz
5 GHz

AiMesh Node Mode
Access Point Mode

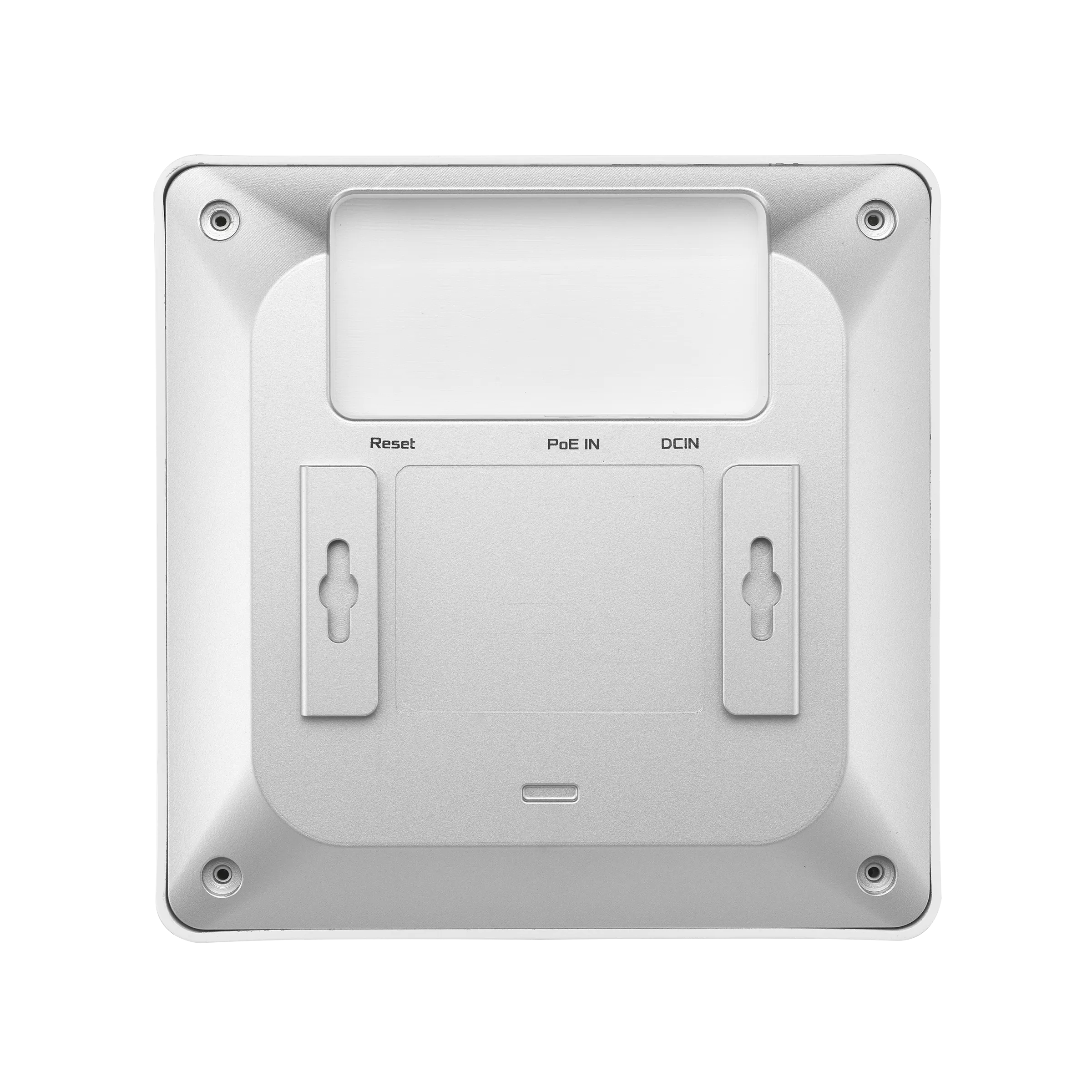

10/100/1000 Gigabit Ethernet Port (support PoE) x 1

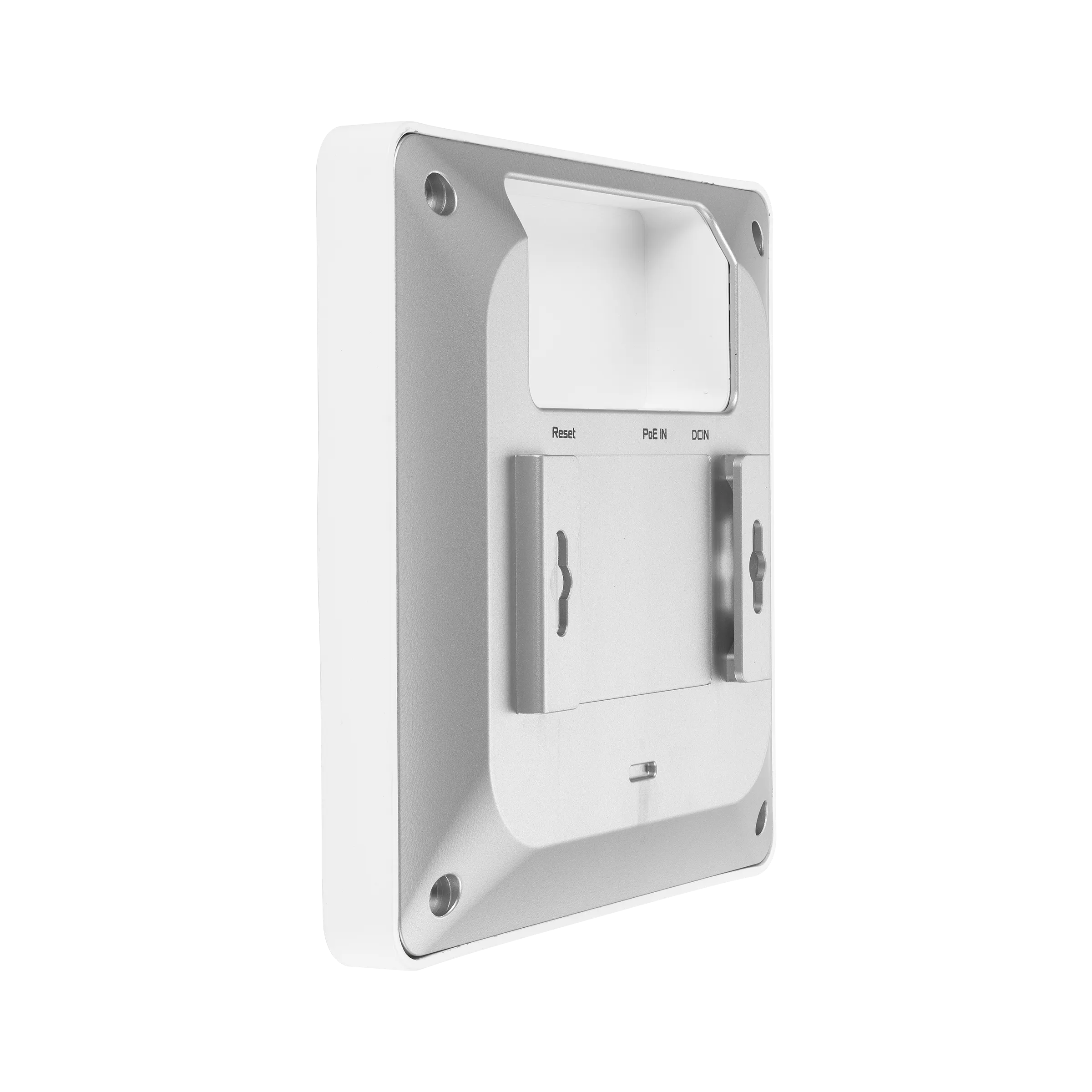

Reset Button

Power x 2

802.3af PoE
12 V with max. 1.5 A current DC (power adapter included)

US: 10.0W
EU: 9.1W

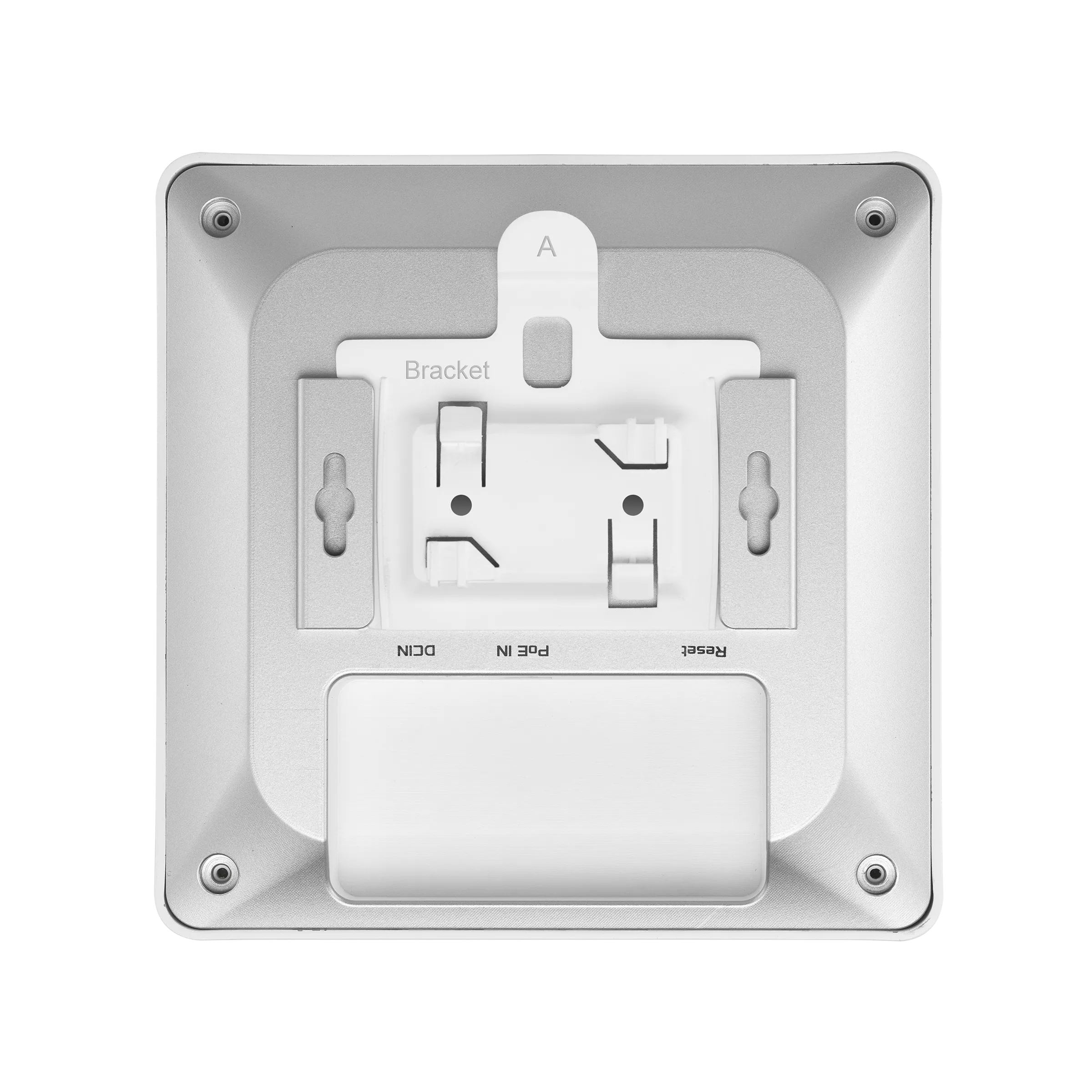

Wall Mount
Ceiling Mount

ExpertWiFi EBA63
RJ-45 cable
Power adapter
Warranty card
Quick start guide
Wall-mount kit

426g
