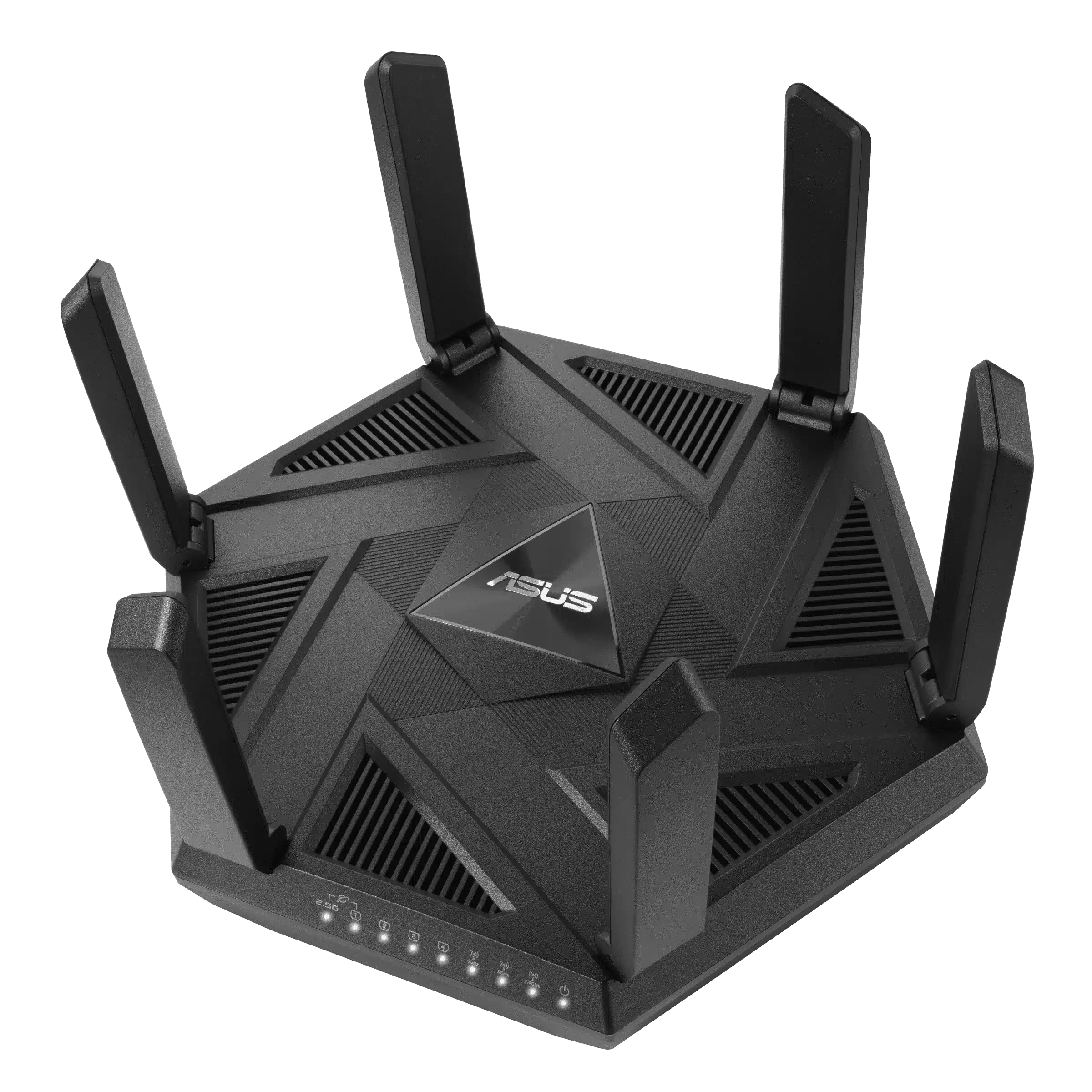

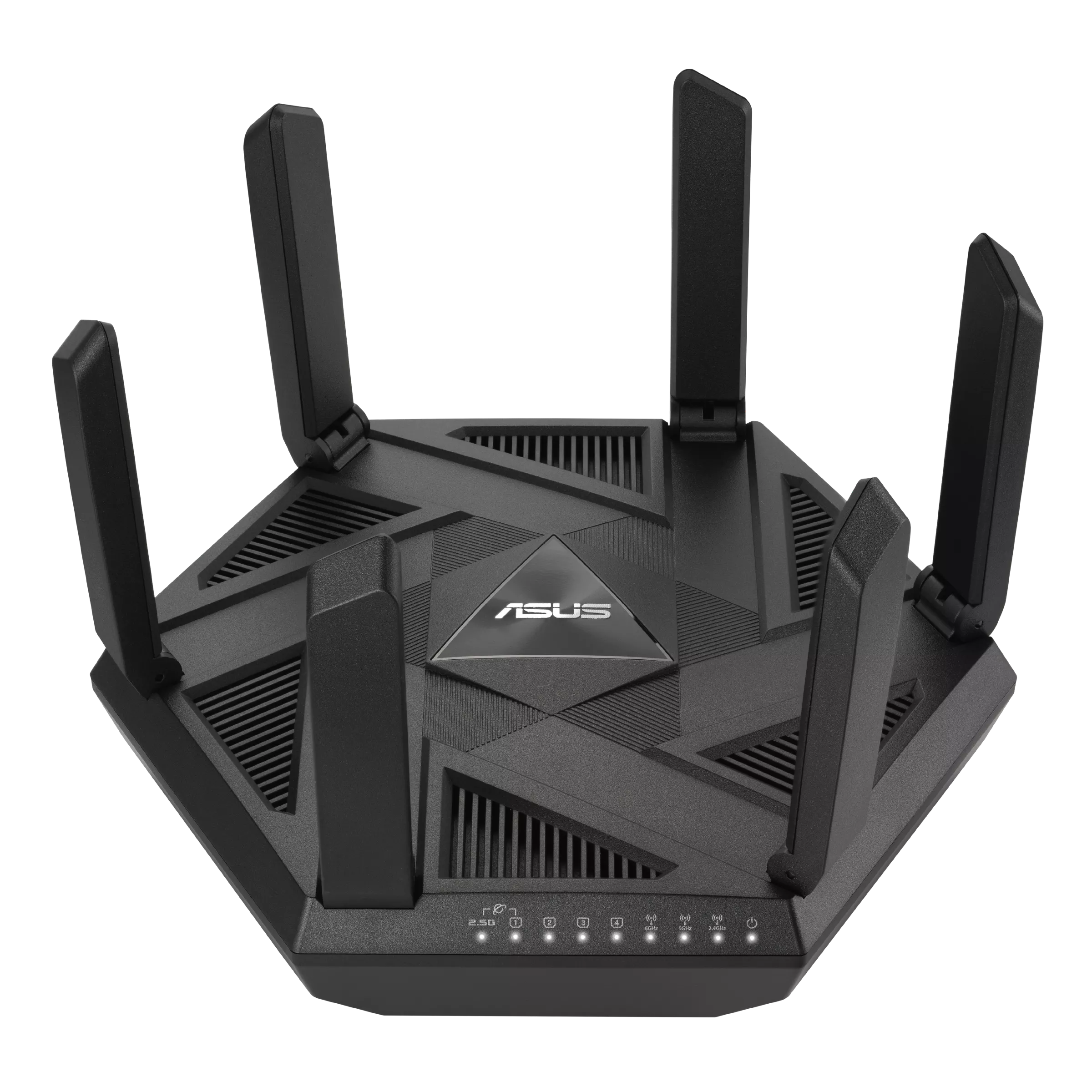

ASUS RT-AXE7800 Tri-band WiFi 6E (802.11ax) Router / 90IG07B0-MU9B00

IPv6

IPv4

WiFi 6E (802.11ax)

WiFi 6 (802.11ax)

WiFi 5 (802.11ac)

WiFi 4 (802.11n)

IEEE 802.11g

IEEE 802.11b

IEEE 802.11a

AXE7800 ultimate AX performance : 574+4804+2402 Mbps

WiFi 6E (802.11ax) (6GHz) : up to 2402 Mbps

WiFi 6 (802.11ax) (5GHz) : up to 4804 Mbps

WiFi 6 (802.11ax) (2.4GHz) : up to 574 Mbps

WiFi 5 (802.11ac) (1024QAM) : up to 2167 Mbps

WiFi 5 (802.11ac) : up to 500 Mbps

WiFi 4 (802.11n) : up to 300 Mbps

802.11g : up to 54 Mbps

802.11b : up to 11 Mbps

802.11a : up to 54 Mbps

External antenna x 6 (non-detachable)

6GHz 2×2

5GHz 4×4

2.4GHz 2×2

1.7GHz quad-core processor

256 MB Flash and 512 MB DDR4 RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
1024-QAM high data rate
20/40/80/160 MHz bandwidth

Tri-band Wi-Fi: 2.4 GHz / 5 GHz / 6 GHz

Router(AiMesh router), AiMesh node, Access point, Repeater, Media bridge

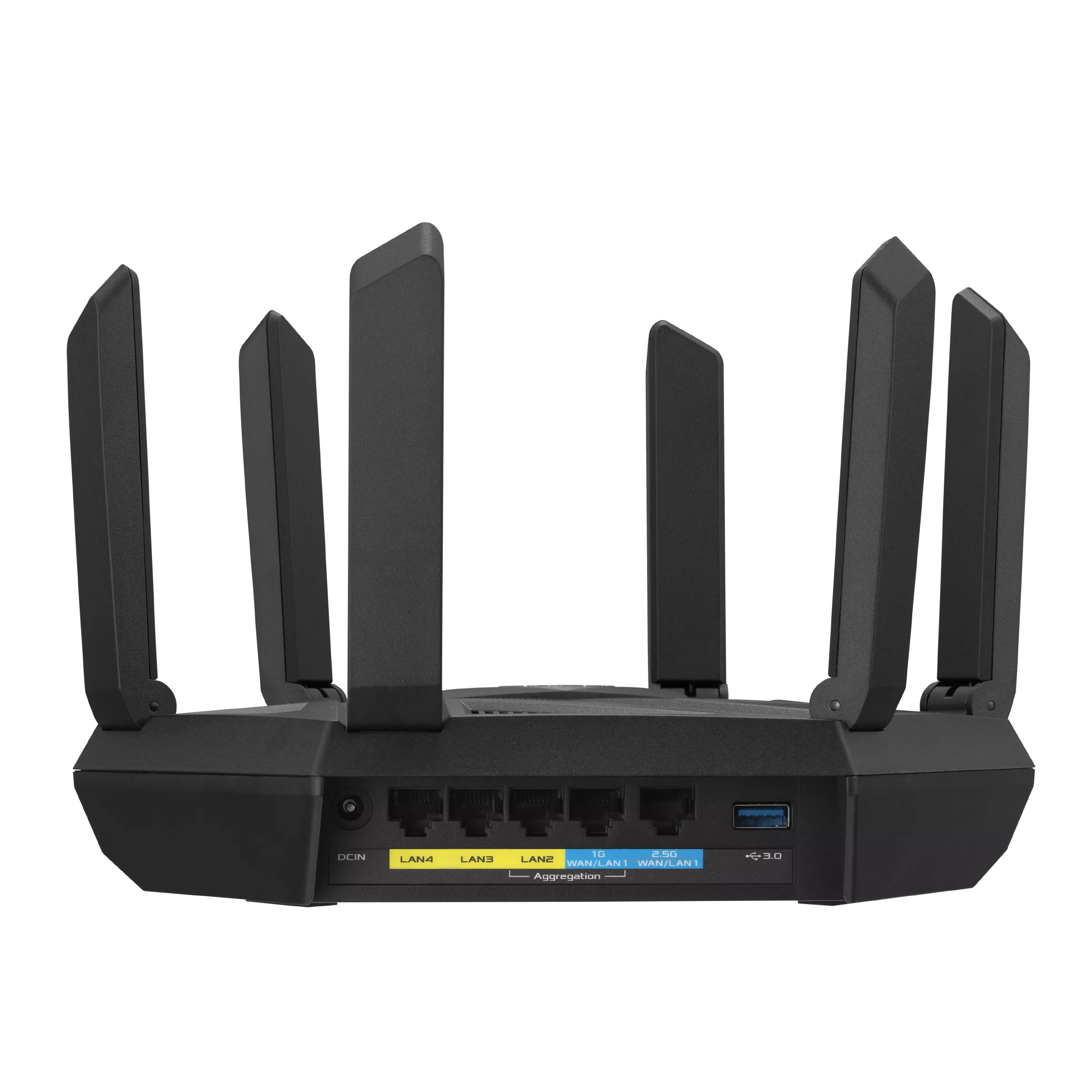

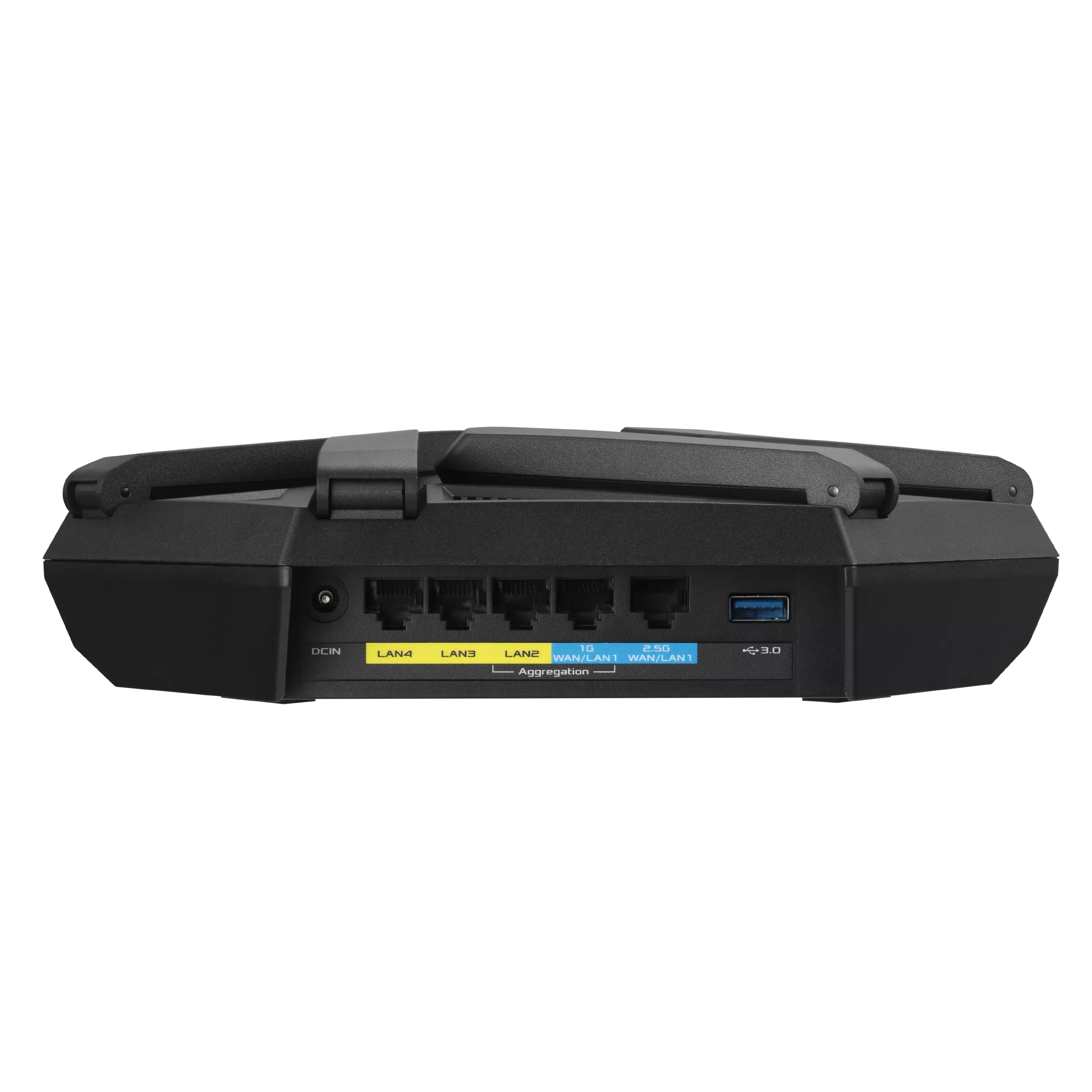

RJ45 for 2.5 Gigabits BaseT for WAN/LAN x 1,
RJ45 for Gigabits BaseT for WAN/LAN x 1,
RJ45 for Gigabits BaseT for LAN x 3,
USB 3.2 Gen 1 Port x 1,

Power on/off switch
Reset Button
WPS Button

Power x 1
2.4GHz x 1
5GHz x 1
6HGz x 1
2.5G WAN/LAN1 x 1
1G WAN/LAN1 x 1
1G LAN x 3

AC Input : 110V~240V(50~60Hz)
DC Output: 12 V with max. 3.0 A current

RT-AXE7800 WiFi Router
RJ-45 Cable
Power Adapter
Quick Start Guide
Warranty Card

1033g
