ASUS RT-BE86U BE6800 WiFi 7 Dual-Band Router / 90IG08W0-MO9A0V
כללי
-
סוג מוצר
נתב
-
יצרן
Asus
-
דגם
RT-BE86U
אחריות
-
תקופת האחריות
שלוש שנים
-
קישור לאתר יצרן
סקירה כללית
Network Standard
IEEE 802.11a
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
IEEE 802.11b
IEEE 802.11g
WiFi 4 (802.11n)
WiFi 5 (802.11ac)
WiFi 6 (802.11ax)
WiFi 7 (802.11be)
IPv4
IPv6
Product Segment
BE6800 ultimate BE performance : 1032+5764 Mbps
WiFi Data Rate
WiFi 7 (802.11be) (2.4GHz): up to 1032 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
WiFi 7 (802.11be) (5GHz): up to 5764 Mbps
Antenna
External antenna x 3； Internal antenna x 1
Transmit / Receive
2.4GHz 3×3
5GHz 4×4
5GHz 4×4
Processor
2.6GHz quad-core processor
Memory
256 MB Flash and 1 GB RAM
Boosts Speed
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160 MHz bandwidth
Operating Frequency
2.4 GHz
5 GHz
5 GHz
Operating Mode
Wireless Router Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode
AiMesh Node Mode
Access Point Mode
Media Bridge Mode
Repeater Mode

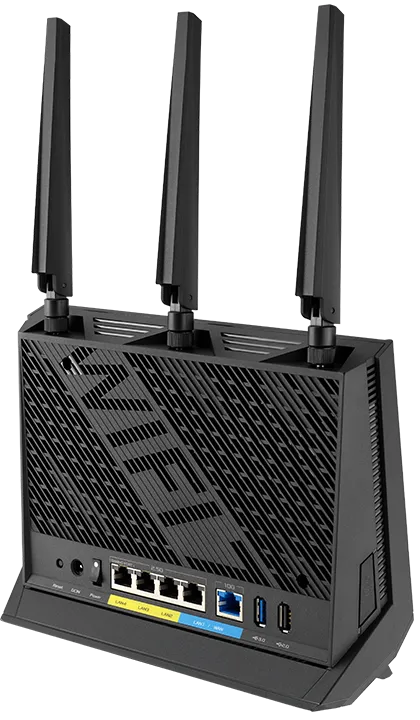

I/O Ports
1 x 10G for WAN/LAN, 1 x 2.5G for WAN/LAN, 3 x 2.5G for LAN, USB 3.2 Gen1 x1, USB 2.0 Gen1 x1
Buttons
WPS Button, Reset Button, Power Switch, LED on/off Button
LED Indicator
WAN x1
10G Port x1
LAN x4
USB x1
2.4GHz x1
5GHz x1
Power x1
10G Port x1
LAN x4
USB x1
2.4GHz x1
5GHz x1
Power x1
Power Supply
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current
DC Output : 12 V with max. 5 A current ； 19.5 V with max. 2.31 A current
Package Content
RT-BE86U WiFi router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
Product Weight (g)
854 g
