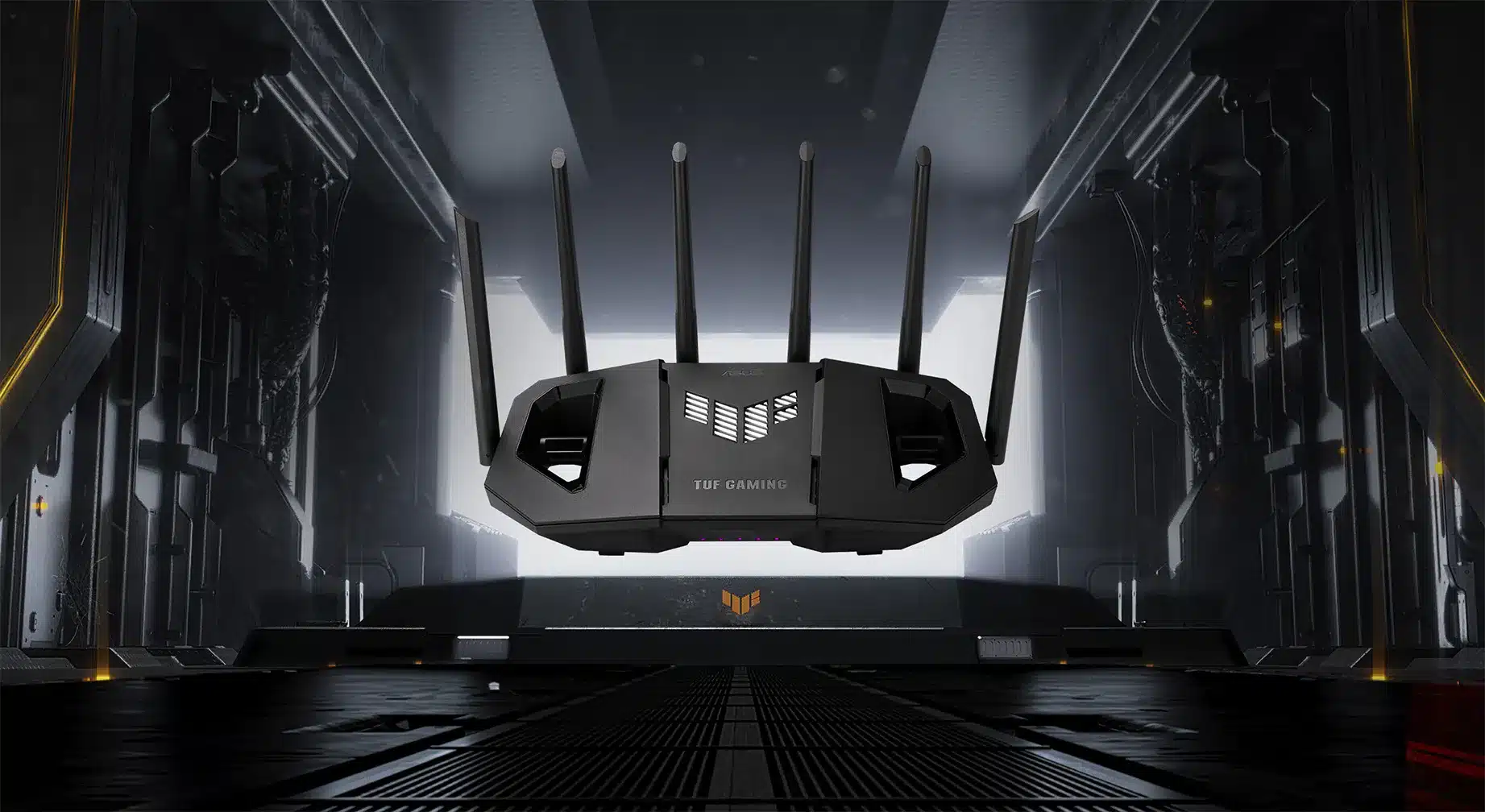

ASUS TUF Gaming BE9400 Tri Band WiFi 7 (802.11be) Extendable Gaming Router / 90IG0A30-MO9C00

IPv6
IPv4
WiFi 7 (802.11be)
WiFi 6 (802.11ax)
WiFi 5 (802.11ac)
WiFi 4 (802.11n)
IEEE 802.11g
IEEE 802.11b
IEEE 802.11a

BE9400 ultimate BE performance : 688+2882+5764 Mbps

WiFi 7 (802.11be) (6GHz): up to 5764 Mbps
WiFi 7 (802.11be) (5GHz): up to 2882 Mbps
WiFi 7 (802.11be) (2.4GHz): up to 688 Mbps

External fixed antenna x 6

6GHz 2×2
5GHz 2×2
2.4GHz 2×2

1.5GHz Quad-core Processor

256 MB Flash and 1 GB RAM

OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth
OFDMA (Orthogonal Frequency Division Multiple Access)
Beamforming: standard-based and universal
4096-QAM high data rate
20/40/80/160/320 MHz bandwidth

6 GHz
5 GHz
2.4 GHz

Repeater Mode
Media Bridge Mode
Access Point Mode
AiMesh Node Mode
Wireless Router Mode

1 x 2.5Gbps for WAN
3 x 2.5Gbps for LAN
1 x USB 3.2 Gen1
1 x 2.5Gbps for WAN
3 x 2.5Gbps for LAN
1 x USB 3.2 Gen1

WPS Button, Reset Button, Power Button

WAN(Internet) x1
6GHz x 1
5GHz x 1
2.4GHz x1
Power x1
WAN(Internet) x1
6GHz x 1
5GHz x 1
2.4GHz x1
Power x1

AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current
AC Input : 110V~240V(50~60Hz)
DC Output : 12 V with max. 2.5 A current

TUF-BE9400 Tri Band Gaming Router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card
TUF-BE9400 Tri Band Gaming Router
RJ-45 cable
Power adapter
Quick Start Guide
Warranty card

764 g
