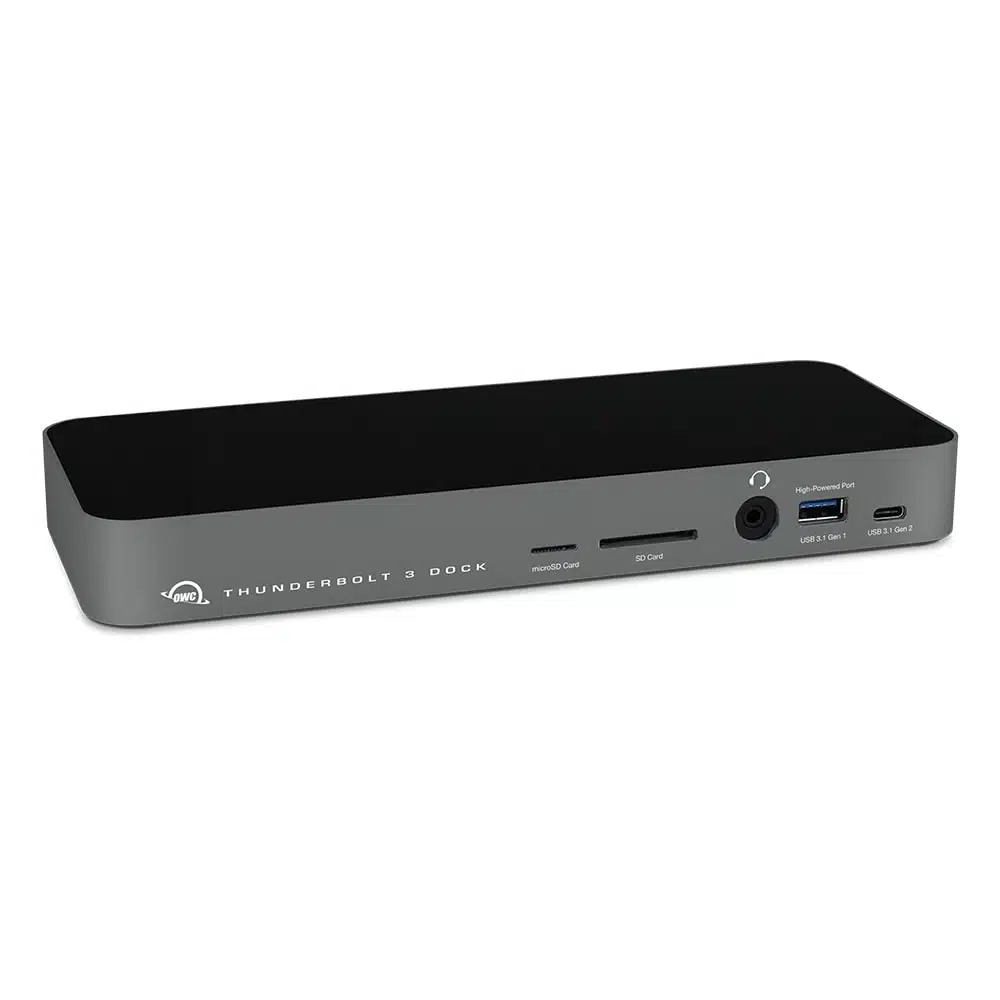

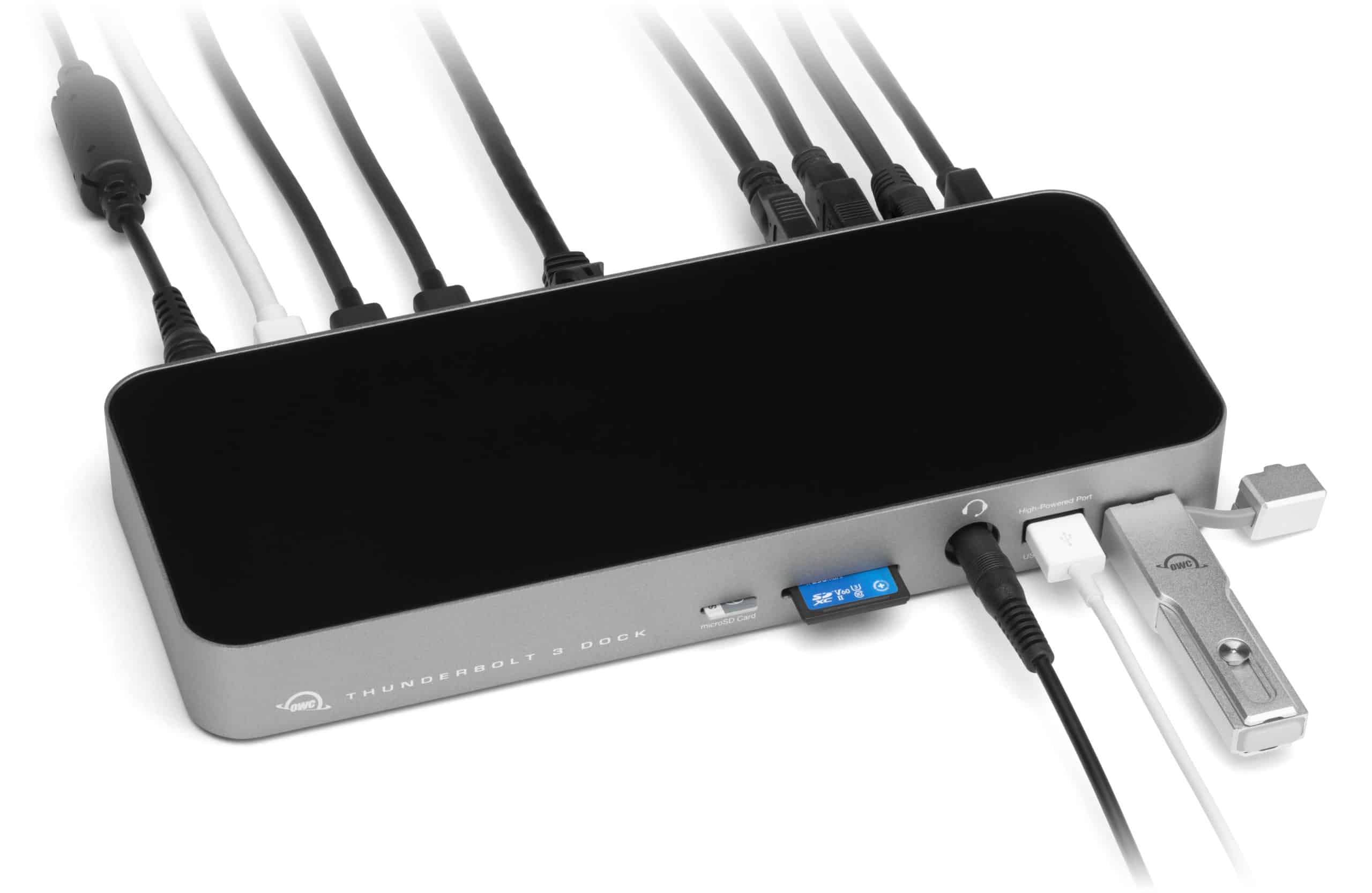

OWC 14-Port Thunderbolt Dock - OWCTB3DK14PSG
כללי
-
סוג מוצר
תחנת עגינה
-
יצרן
OWC
אחריות
-
תקופת האחריות
שנתיים
-
נותן השירות
היבואן
סקירה כללית
-

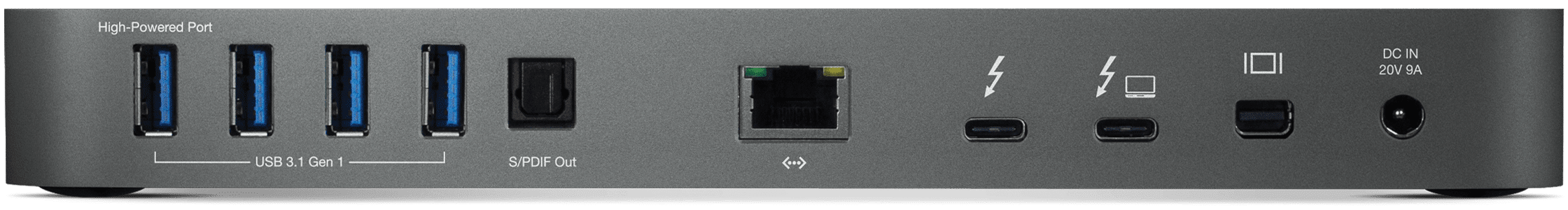

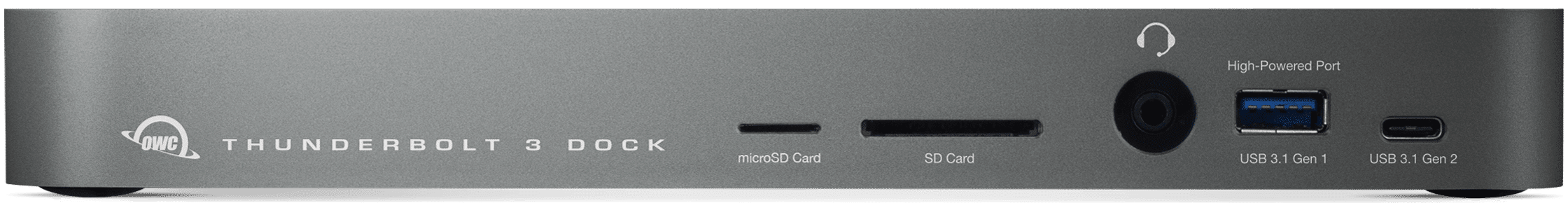

Device Ports
- (1) Host Port – Thunderbolt 3 (USB-C) up to 40Gb/s (5000MB/s)
- (1) Thunderbolt 3 (USB-C) Port
- (1) USB 3.2 Gen 2 Type-C Port up to 10Gb/s (1250MB/s) – USB 2.0/3.0 backwards compatible
- (5) USB 3.2 Gen 1 Type-A Ports up to 600MB/s
- (1) Mini DisplayPort Port
- (1) Gigabit Ethernet (GbE) RJ45 Port
- (1) S/PDIF Digital Audio Output Port
- (1) 3.5mm Stereo Audio Input/Output Combo Port
Memory Card Slots
- (1) microSD
- (1) SD
Power Delivery
- Thunderbolt 3 host port provides up to 85W of power to the host computer
Additional Ports
- None
UASP Support
- UASP (USB Attached SCSI Protocol) is supported
-
Display Support
- Up to one 5K display @ 60Hz,
- or two 4K displays @ 60Hz
Display Support by Port
- Thunderbolt 3: Up to 5K @ 60Hz via a native Thunderbolt 3 display or 4K @ 60Hz via a Thunderbolt display or a USB-C display adapter
- Mini DisplayPort 1.2: Up to 4K @ 60Hz
-
Ethernet Speeds (RJ45)
- 1Gb/s "Gigabit" (1000BASE-T)
- 100Mb/s (100BASE-T)
- 10Mb/s (10BASE-T)
Jumbo Frame Support
- Yes
-
Chipset / Controller
- Thunderbolt 3 – Intel JHL6540
- USB Type-C – ASMedia ASM1142
- USB Type-A – Fresco Logic FL1100EX (x2)
- Ethernet – Intel i210
- S/PDIF Audio – C Media CM6533
- Headphone / Mic – C Media CM6533
- SD 4.0 Slot – Genesys Logic GL3227
- Mini DisplayPort DP++ – Parade PS181
-
External Power Adapter
- Yes
Power Supply
- External UL-listed universal auto-switching power supply
- Need an additional power supply? Secondary/replacement power supplies may also be available.
AC Input
- 120-240V, 50-60Hz, 2.5A
DC Output
- +20V, 9A
Wattage
- 180W
-
Security Slot
- No
Housing Color
- Chassis: Space Gray
- Covers: Black
Housing Material
- Chassis: Aluminum
- Covers: Polycarbonate
Dimensions
- Height: 2.5 cm (1.0 in)
- Length: 8.9 cm (3.5 in)
- Width: 23.0 cm (9.1 in)
Weight
- 500.0 g (1.10 lbs)
-
Certifications
- CE
- FCC
RoHS Compliant
- Yes
Reach Certification
- Yes
UPC
- 810586030540
-
Ambient Temperature
- Operating: 32°F to 104°F (0°C to 40°C)
- Non-Operating: -4°F to 158°F (-20°C to 70°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
