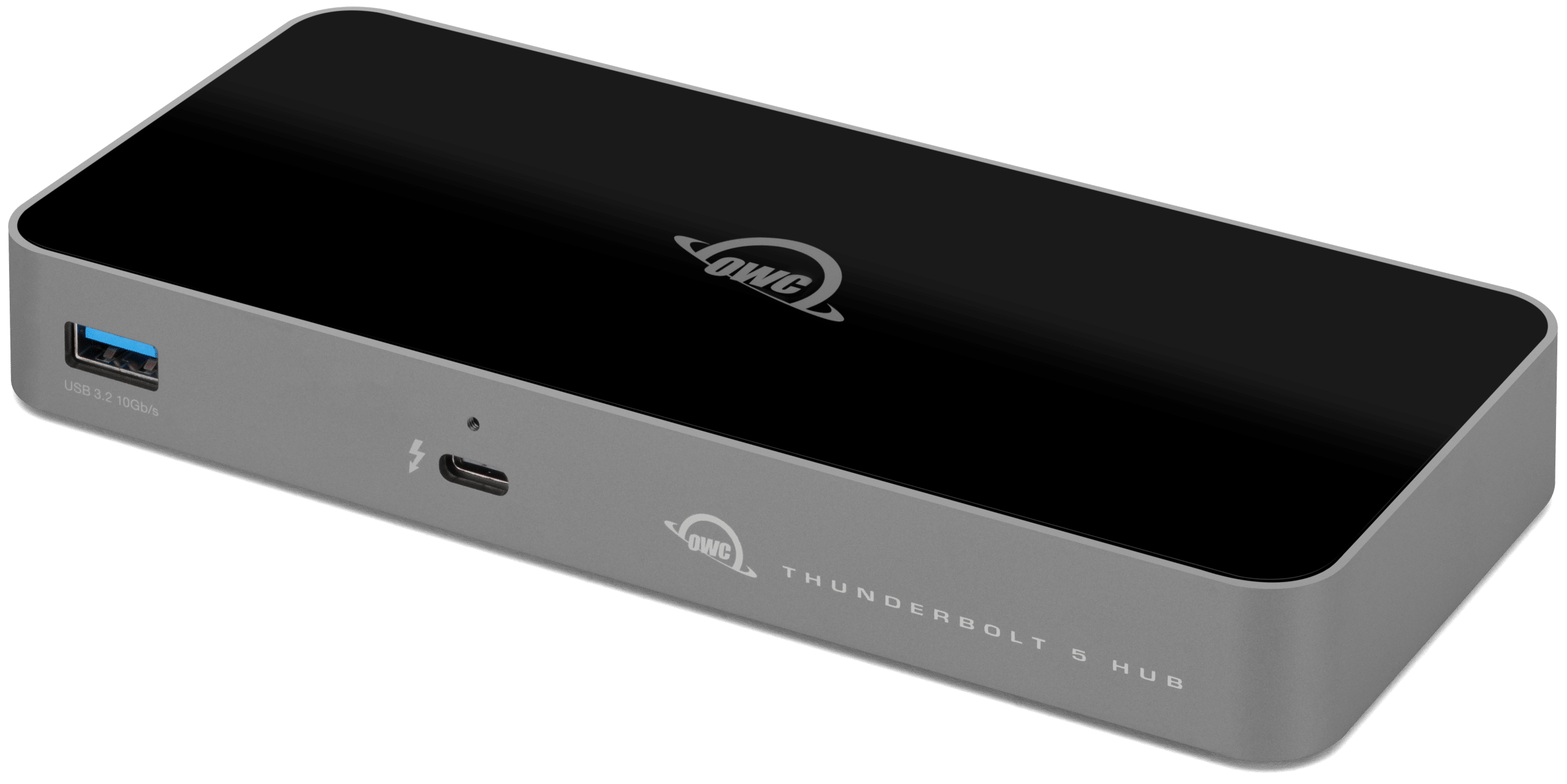

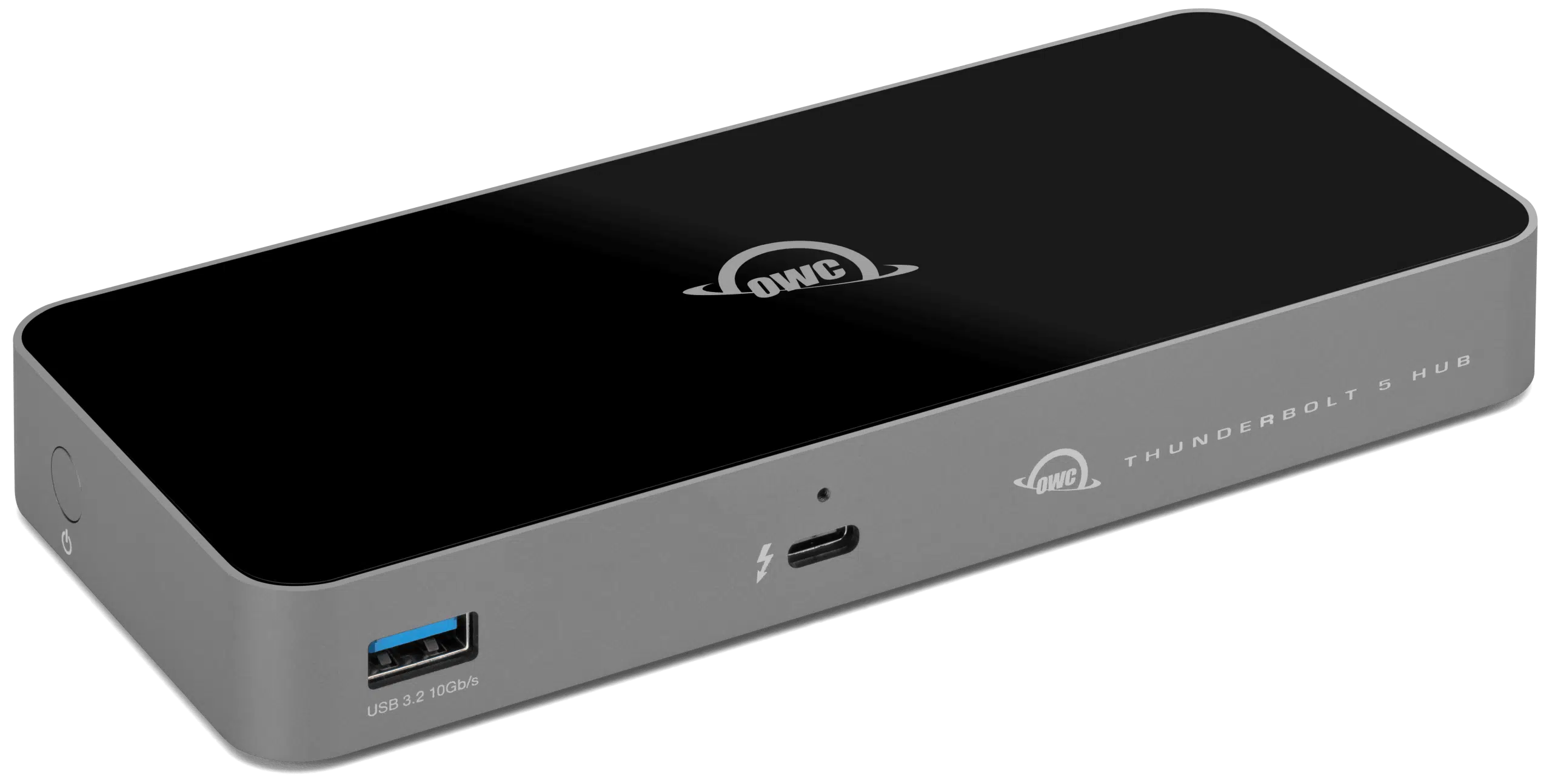

OWC Thunderbolt 5 Hub - OWCTB5HUB5P
כללי
-
סוג מוצר
תחנת עגינה
-
יצרן
OWC
אחריות
-
תקופת האחריות
שנתיים
-
נותן השירות
היבואן
סקירה כללית
-

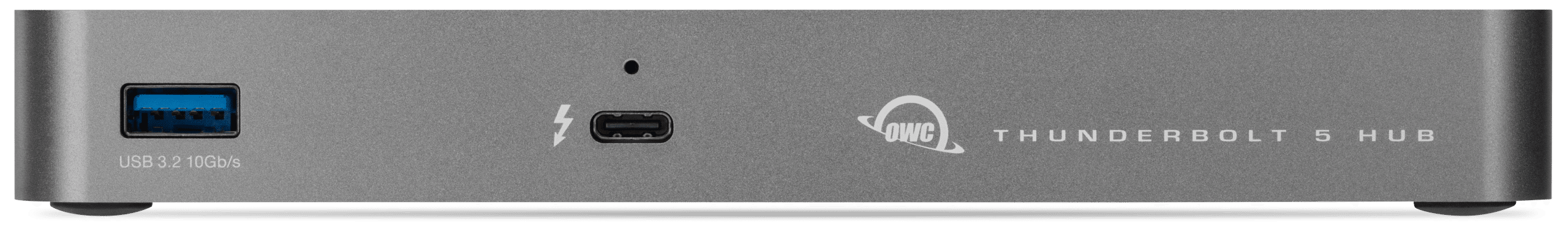

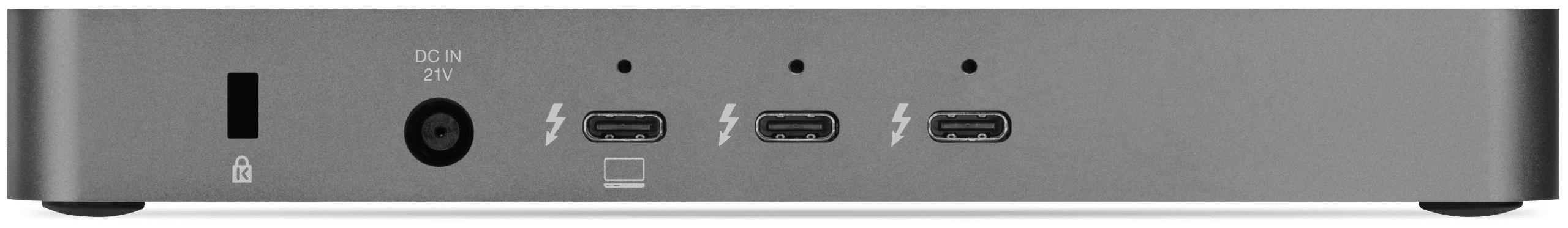

Device Ports
- (1) Host Port – Thunderbolt 5 (USB-C) up to 80Gb/s bi-directional data speed and up to 120Gb/s display bandwidth
- (3) Thunderbolt 5 (USB-C) Ports
- (1) USB 3.2 Gen 2 Type-A Port up to 10Gb/s (1250MB/s) – USB 2.0/3.0 backwards compatible
Power Delivery
- Power delivery supplied to the host system will vary between 140W and 100W based on the power delivery supplied to other devices connected to downstream ports.
- The host system may not require the full 140W of power delivery and may automatically negotiate a reduced rate based on the needs of the system. Some host systems may limit power delivery to 100W maximum.
- Thunderbolt 5 device ports (for external drives and other devices) provide 15W of power.
- USB port provides up to 1.5A of power for bus-powered drives and device charging.
UASP Support
- UASP (USB Attached SCSI Protocol) is supported
-
Display Support
- Up to three 8K displays @ 60Hz,
- or two 8K displays @ 120Hz,
- or three 4K displays @ 144Hz
Display Support by Port
- Thunderbolt 5 up to two 8K @ 120Hz or three 4K @ 144Hz via a native Thunderbolt 5 display or other displays that support USB-C connections and DisplayPort 2.1
-
External Power Adapter
- Yes
Power Supply
- External UL-listed universal auto-switching power supply
AC Input
- 100-240V, 50/60Hz, 2.5A
DC Output
- +21V, 8.58A
Wattage
- 180W
-
Security Slot
- Yes

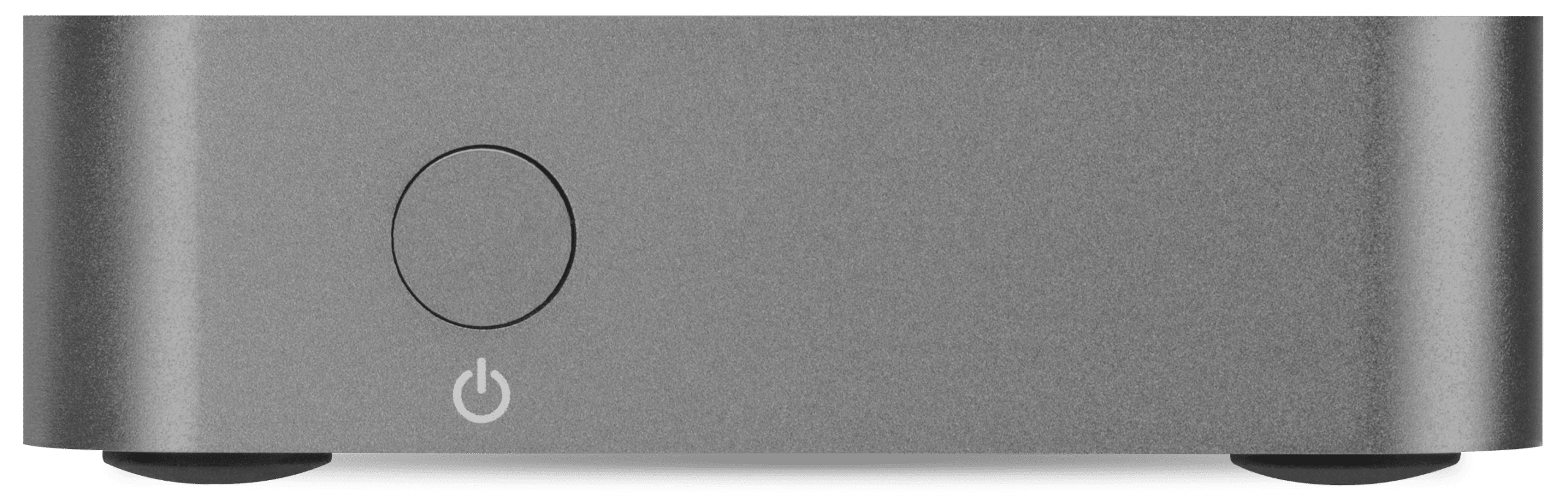

Power Button
- Yes
Housing Color
- Chassis: Space Gray
- Covers: Black
Housing Material
- Chassis: Aluminum
- Covers: Polycarbonate
Dimensions
- Height: 2.2 cm (0.9 in)
- Length: 7.8 cm (3.1 in)
- Width: 17.8 cm (7.0 in)
Weight
- 382.0 g (0.84 lbs)
-
Certifications
- CE
- FCC
- ICES
- RCM
- VCCI
- UKCA
RoHS Compliant
- Yes
Reach Certification
- Yes
UPC
- 810159628211
-
Ambient Temperature
- Operating: 32°F to 86°F (0°C to 30°C)
- Non-Operating: -4°F to 140°F (-20°C to 60°C)
Altitude
- Operating: -304.8 m to 3,048.0 m (-1,000 ft to 10,000 ft)
- Non-Operating: -304.8 m to 12,192.0 m (-1,000 ft to 40,000 ft)
Humidity
- Operating: 8% to 90% non-condensing
- Non-Operating: 5% to 95% non-condensing
