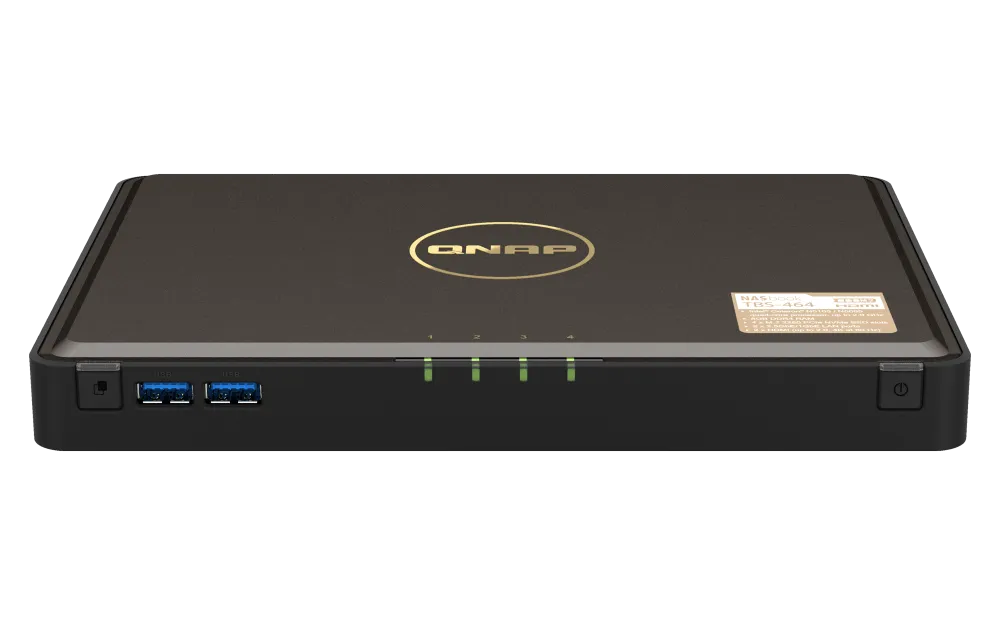

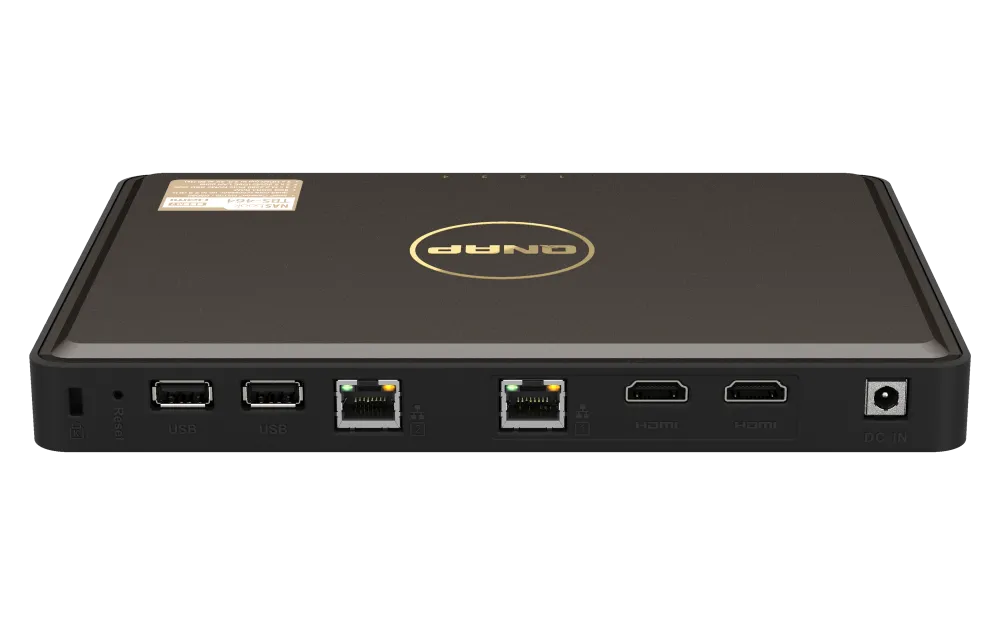

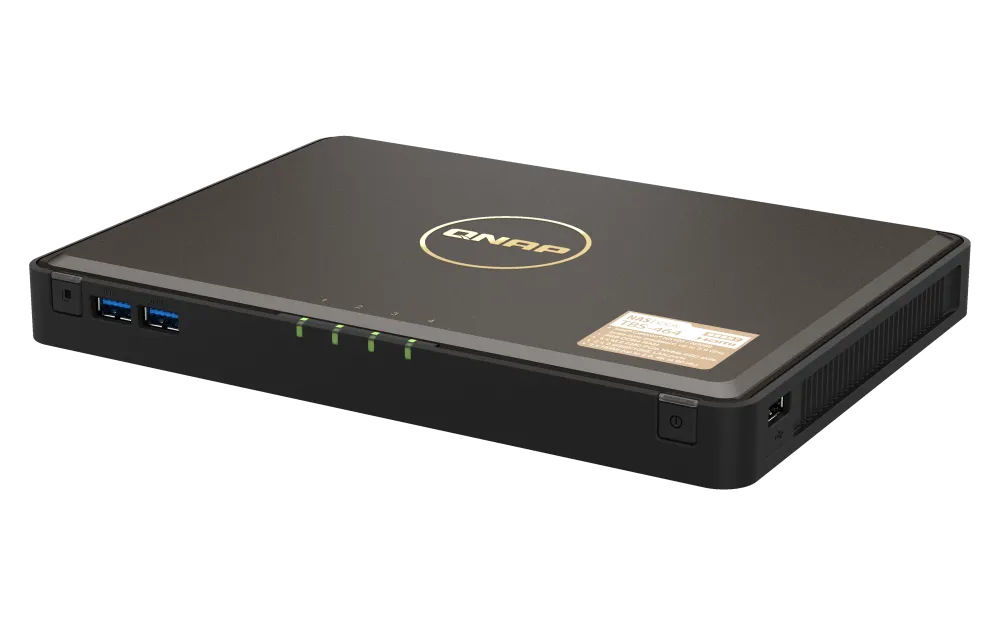

QNAP TBS-464-8G 4-Bay 8GB NAS Server storage NASbook ללא כוננים / דיסקים
כללי
-
סוג מוצר
אחסון NAS
-
יצרן
QNAP
-
צבע
Black
אחריות
-
תקופת האחריות
שנתיים
-
סוג האחריות
יבואן רישמי
מידע נוסף
-
תכולת האריזה
TBS-464 Ethernet Cable x 1 AC Adapter Power Cord x 1 M.2 SSD Heatsink x 4 M.2 SSD Thermal Pads x 12 Quick Installation Guide (QIG)
-
קישור לאתר יצרן
סקירה כללית
| CPU | Intel® Celeron® N5105 4-core/4-thread processor, burst up to 2.9 GHz |
| CPU Architecture | 64-bit x86 |
| Graphic Processors | Intel® UHD Graphics |
| Floating Point Unit | Yes |
| Encryption Engine | (AES-NI) |
| Hardware-accelerated Transcoding | Yes |
| System Memory | 8 GB DDR4, not expandable |
| Maximum Memory | 8 GB DDR4, not expandable |
| Flash Memory | 4GB (Dual boot OS protection) |
| M.2 Slot | 4 x M.2 2280 NVMe Gen3 x2 slots
The system is shipped without SSD.
For the SSD compatibility list, please visit https://www.qnap.com/compatibility/ |
| SSD Cache Acceleration Support | Yes |
| 2.5 Gigabit Ethernet Port (2.5G/1G/100M) | 2 (2.5G/1G/100M/10M) |
| Wake on LAN (WOL) | Yes |
| Jumbo Frame | Yes |
| USB 2.0 port | 3 |
| USB 3.2 Gen 1 port | 2 |
| IR Sensor | (RM-IR004) |
| HDMI™ Output | 2, HDMI™ (up to 2.0 resolution 3840 x 2160 @ 60Hz) |
| Form Factor | Set-top design |
| LED Indicators | SSD1-4 |
| Buttons | Power, Reset, Copy |
| Dimensions (HxWxD) | 30 × 230 × 165 mm |
| Weight (Net) | 1.4 kg |
| Weight (Gross) | 1.7 kg |
| Operating Temperature | 0 – 40 °C (32°F – 104°F) |
| Storage Temperature | -20 – 70°C (-4°F – 158°F) |
| Relative Humidity | 5-95% RH non-condensing, wet bulb: 27˚C (80.6˚F) |
| Power Supply Unit | 65W adapter (12VDC), 100-240VAC |
| Power Consumption: Disk Standby Mode | 18 W |
| Power Consumption: Operating Mode, Typical | 28 W
Tested with drives fully populated.
|
| Fan | 1 x system fan |
| System Warning | Buzzer |
| Kensington Security Slot | Yes |
| Standard Warranty | 2 |
| Max. Number of Concurrent Connections (CIFS) – with Max. Memory | 1500 |
