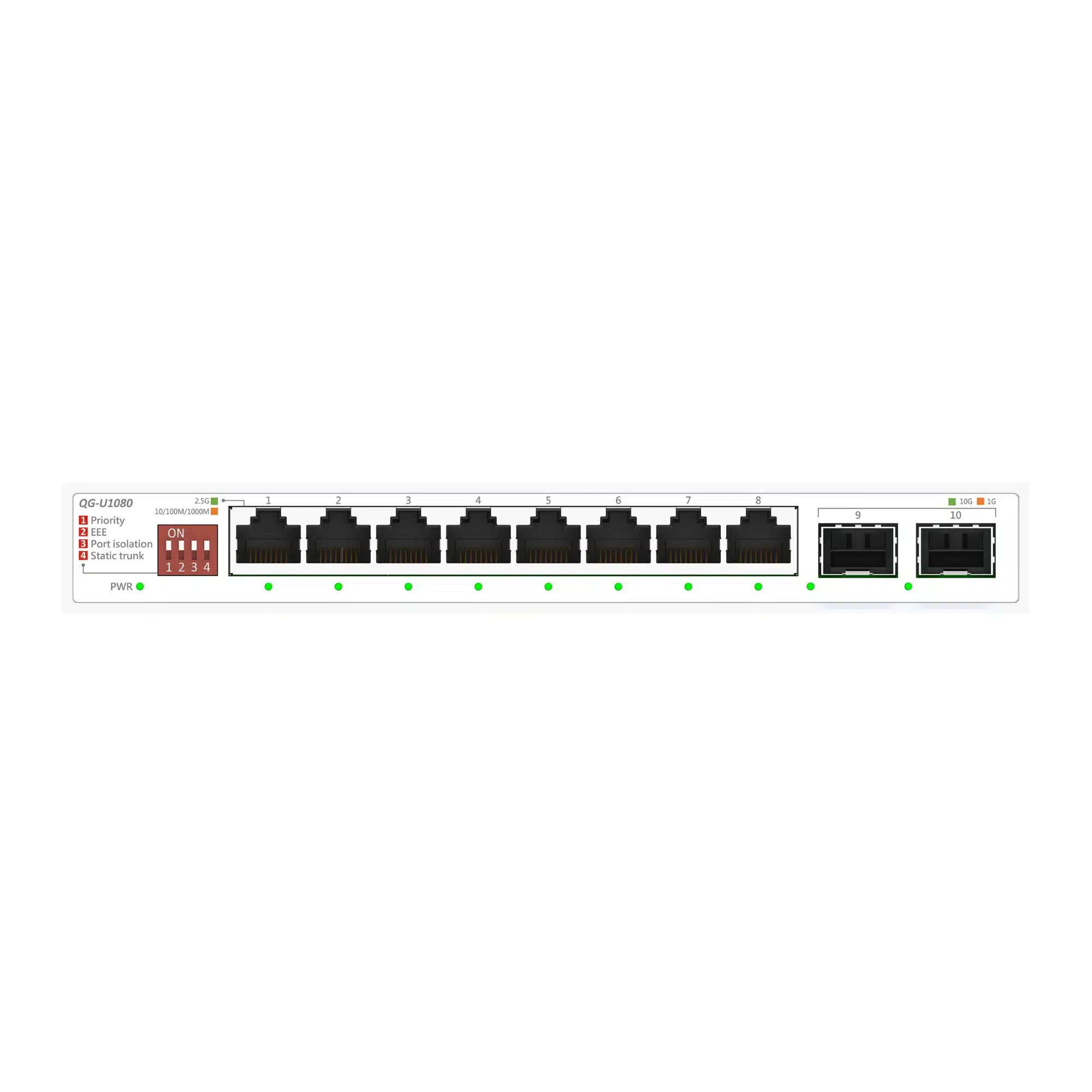

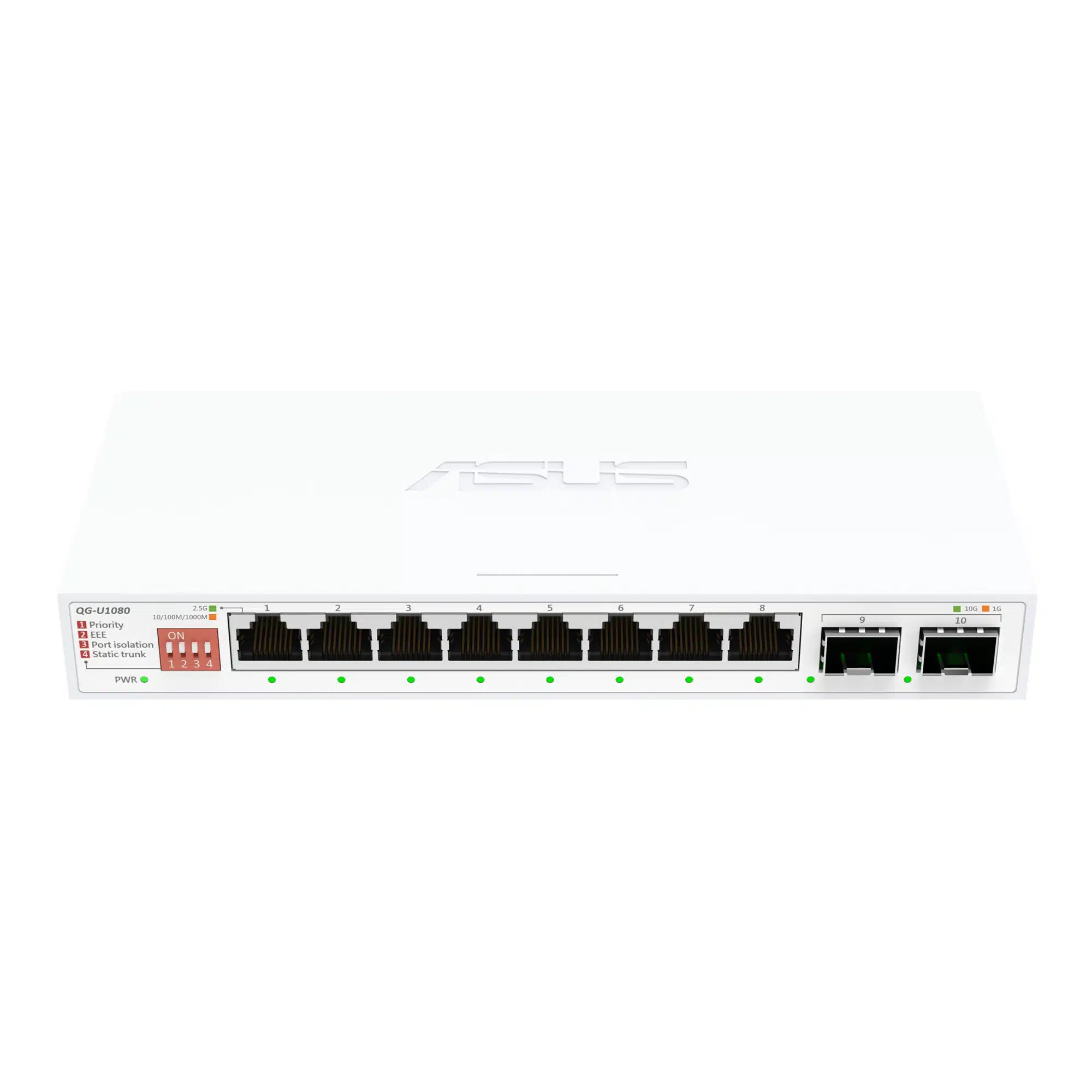

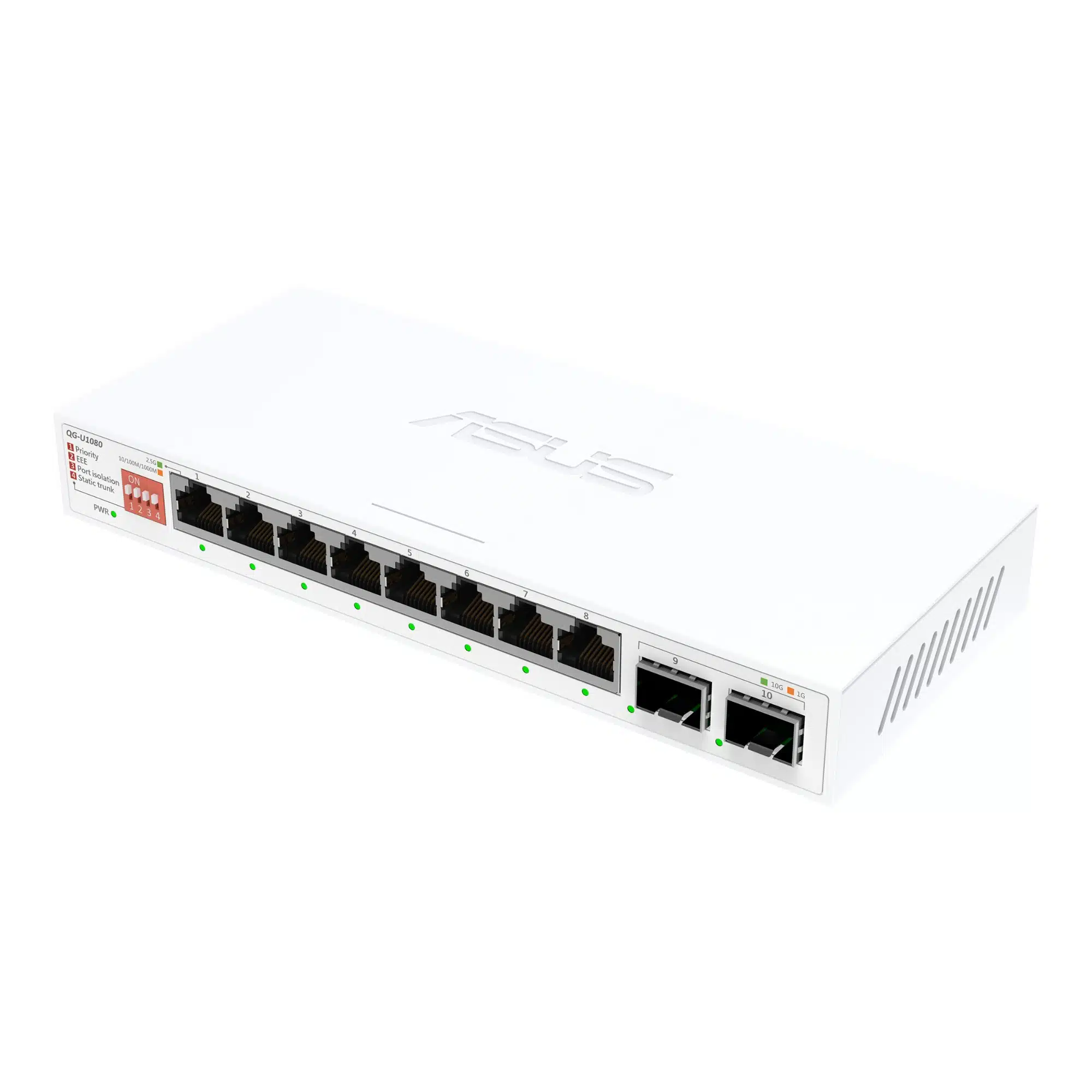

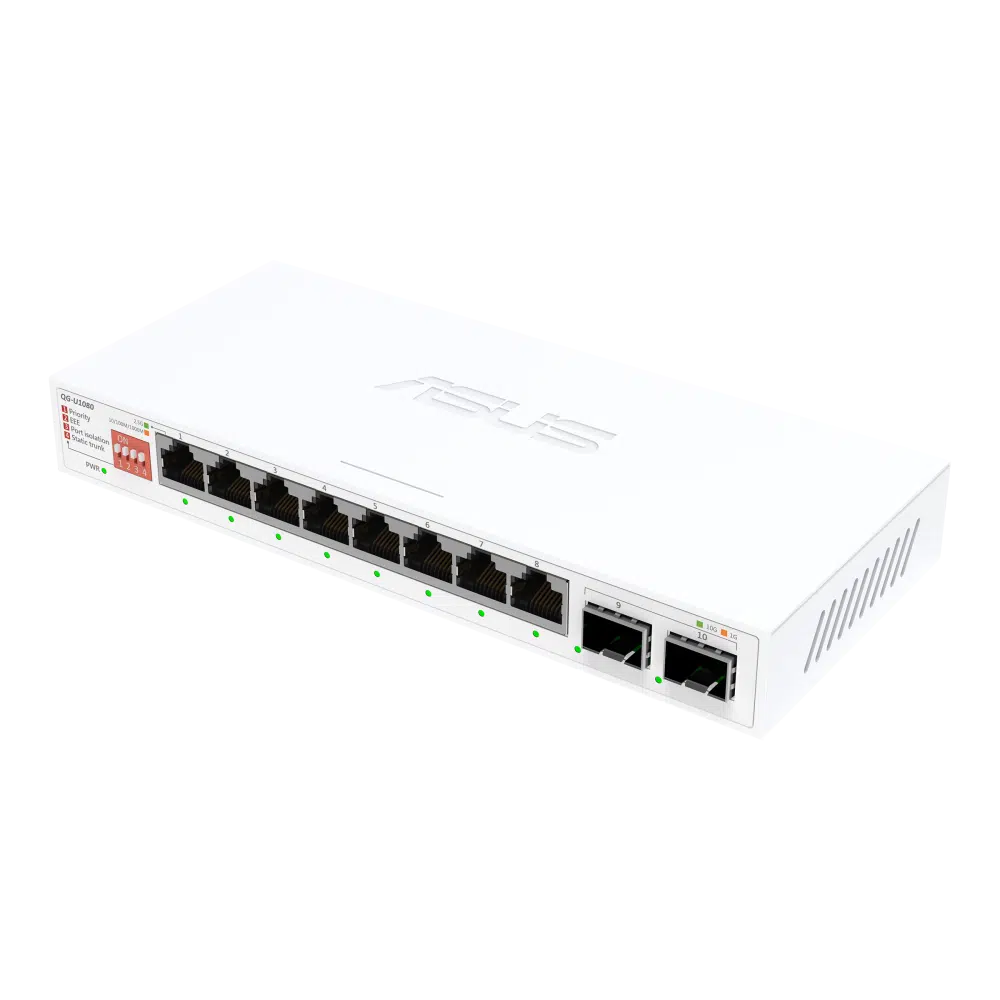

ASUS QG-U1080, 8-Port 2.5G and 2-Port 10G SFP+ Unmanaged Switch / 90IG0A00-MO3B00
-
סוג מוצר
מתג
-
יצרן
Asus
-
דגם
QG-U1080
-
צבע
White
-
תקופת האחריות
שלוש שנים
-
קישור לאתר יצרן
סקירה כללית
8 x 2.5G RJ45 ports
2 x 10G SFP+ ports
8 x 2.5G RJ45 ports
2 x 10G SFP+ ports
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3bz 2.5G BASE-T
IEEE 802.3-2012, IEEE 10GBASE-KR (10.3125 Gbps)
IEEE802.3az EEE
IEEE802.3x Flow control
IEEE802.3u 100BASE-TX
IEEE802.3ab 1000BASE-T
IEEE802.3bz 2.5G BASE-T
IEEE 802.3-2012, IEEE 10GBASE-KR (10.3125 Gbps)
IEEE802.3az EEE
IEEE802.3x Flow control
White
MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 59.52Mpps (64-byte)
MAC address Table: 16K
Packet buffer: 8Mbits
Jumbo Frame: 10K bytes
Forwarding Rate: 59.52Mpps (64-byte)
Power LED
Off: The switch is powered off or fails.
Green On: The switch is powered on.
Blinking: Loop detected.
Port 1-8 LED
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.
SFP+ Port 9-10 LED
Off: Devices are disconnected or the link has failed.
Green On: 10Gbps connection
Amber On: 1Gbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.
Power LED
Off: The switch is powered off or fails.
Green On: The switch is powered on.
Blinking: Loop detected.
Port 1-8 LED
Off: Devices are disconnected or the link has failed.
Green On: 2.5Gbps connection
Amber On: 10/100/1000Mbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.
SFP+ Port 9-10 LED
Off: Devices are disconnected or the link has failed.
Green On: 10Gbps connection
Amber On: 1Gbps connection
Blinking: Devices are connected and data is transmitting or receiving.
Blinking rapidly: Loop detected.
External Power Adapter
Output: 12V/1A
External Power Adapter
Output: 12V/1A
Operating Temperature: 0 ~ 40℃
Storage Temperature: -40 ~ 70℃
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)
Operating Temperature: 0 ~ 40℃
Storage Temperature: -40 ~ 70℃
Operating Humidity: 10% ~ 90% RH (non-condensing)
Storage Humidity: 5% ~ 90% RH (non-condensing)
ASUS QG-U1080 Switch
Power Adapter
Quick Start Guide
Warranty Card
ASUS QG-U1080 Switch
Power Adapter
Quick Start Guide
Warranty Card
420 g
